China Mirror Finish Stainless Steel Honeycomb Core Panel

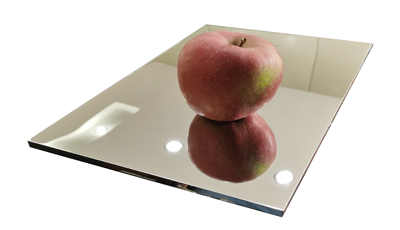

What is Mirror Finish Stainless Steel Honeycomb Core Panel?

Stainless steel honeycomb core panel is a sandwich panel consisted of 3 layers. The middle layer is lightweight aluminium honeycomb core, the top layer & bottom layer are stainless steel sheets. And mirror stainless steel honeycomb panel is one type of fancy finish among these honeycomb core panels. The top sheet is finely polished stainless steel, classified as 8K polished silver mirror finish. This finish is very high reflective, it can reflect very clear images.

Basic specifications of Mirror Finish Stainless Steel Honeycomb Core Panel:

Width of mirror stainless steel honeycomb core panel: 1000mm, 1200mm

Length of stainless steel honeycomb core panel: 2440mm or cut to size.

Thickness of mirror panel: 10mm, 15mm, 20mm, 25mm or as required.

Mirror stainless steel skin sheet thickness: 0.7mm, 1mm or as required.

Grade of stainless steel honeycomb core panel: 304, 316L

Core: aluminium honeycomb core A6*0.05

Panel edges: concealed edges

Place of original: Guangzhou, China

Applications of Mirror Finish Stainless Steel Honeycomb Core Panel:

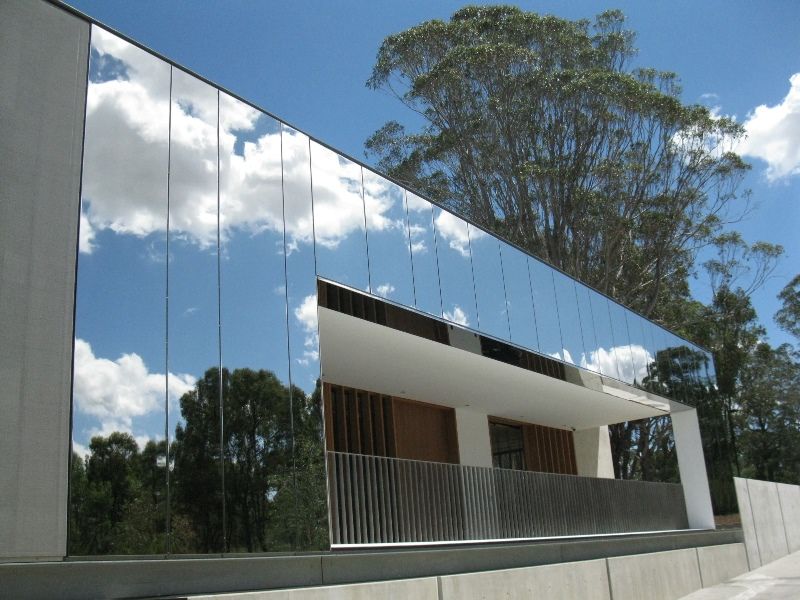

1. Facade cladding. Some projects want to have eye-catching look facade, then miror finish stainless steel honeycomb panel is ideal to be used. When people walk passing by, they can see reflection of themselves, that's quite interesting design. In some countries, such high reflective decoration facade materials might not be allowed to be used, for it could cause light pollution (reflection could affect the safty of air crafts).


2. Interior wall such as hotel lobbys or ceiling area. Such feature walls or fancy ceiling can make the interior space look much more amplified / larger.

Why do we use Mirror Finish Stainless Steel Honeycomb Core Panel rather than solid stainless steel panel?

1. Stainless steel honeycomb core panel is more flat, because of the stable structure of honeycomb core. Especially for mirror finish, it's easy to notice wavy surface. Solid stainless steel no matter 2mm thick or 3mm thick would shows some oil canning / wavy surface. Making mirror sheets with honeycomb core panel structure can greatly improve the surface flatness.

2. Reduce the weight. A solid mirror stainless steel honeycomb core panel only weighs 12kg/m2 (10mm thick), while a solid stainless steel panel weighs 24kgs/m2 (3mm thick).

If you are looking for a manufacturer of Mirror Finish Stainless Steel Honeycomb Core Panel from China, please contact us.
