In the world of commercial transportation and construction, material selection is the cornerstone of durability, functionality, and cost-efficiency. Few materials offer the versatility and strength-to-weight ratio of Fiberglass Reinforced Plastic (FRP), also known as Glass Reinforced Plastic (GRP). For applications specifically involving truck boxes and roofing systems, the thickness of the plate—ranging from 1.2mm to 3mm—plays a critical role in performance.
This comprehensive guide explores the nuances of using FRP Plate and GRP Plate in these demanding environments. We will delve into how different thicknesses like 1.2mm FRP Plate, 1.5mm FRP Plate, 2mm FRP Plate, and 3mm FRP Plate (along with their GRP counterparts) serve distinct purposes, from creating robust sandwich panels for truck bodies to providing durable, light-transmitting roofing solutions.
Before diving into specific thicknesses and applications, it is essential to understand what these materials are. FRP Plate (Fiberglass Reinforced Plastic) and GRP Plate (Glass Reinforced Plastic) are composite materials made from a polymer matrix reinforced with glass fibers. The terms are often used interchangeably, though GRP specifically highlights the glass reinforcement.
The result is a material that boasts high tensile strength, impact resistance, and excellent weatherability while remaining significantly lighter than steel or aluminum. These properties make it the ideal candidate for the transportation and construction sectors, particularly for truck boxes and roofing.
The performance of a Fiberglass Plate is heavily dictated by its thickness. A thinner plate offers flexibility and ease of handling, while a thicker plate provides maximum structural rigidity and impact resistance. Selecting the correct thickness is a matter of balancing weight, strength, and application requirements.
1.2mm FRP Plates: Ideal for lightweight liners and applications where the plate will be bonded to a strong substrate.
1.5mm FRP Plates: The "Goldilocks" thickness for many truck box liners, offering a great balance of flexibility and puncture resistance.
2mm FRP Plates: Used in areas requiring higher structural integrity, often in flooring or sidewalls with higher load-bearing expectations.
3mm FRP Plates: The heavy-duty standard for structural roofing and high-impact truck floors, providing maximum rigidity.
When constructing truck boxes—whether for dry vans, refrigerated trailers, or service bodies—the interior lining must withstand constant abrasion from cargo, impacts from shifting loads, and exposure to moisture and chemicals. This is where FRP Plate truly shines.
In modern truck body manufacturing, FRP Plate is rarely used as a standalone structural element. Instead, it is utilized as the inner and outer skin of a sandwich panel. This panel typically consists of a lightweight core (such as plywood, foam, or honeycomb) laminated between two layers of GRP Plate.
This method combines the flexural strength of the fiberglass with the insulating or lightweight properties of the core, creating a wall that is stronger than the sum of its parts.
For the interior lining of truck boxes, manufacturers often turn to 1.2mm FRP Plate or 1.5mm FRP Plate. These gauges are preferred because they are thin enough to be flexible, allowing them to conform to the walls of the box, yet thick enough to resist tearing from sharp cargo.
1.2mm GRP Plate: Often chosen for weight-saving initiatives. It provides a smooth, non-porous surface that is easy to clean—a critical factor for food transport or sanitation-sensitive cargo. It is also thin enough to be rolled into coils, which brings us to the next point.
A significant manufacturing efficiency for truck boxes is the use of Fiberglass Plate in coil form. 1.5mm GRP Plate and 1.2mm GRP Plate are commonly supplied in rolls.
Q: Why is coiled FRP plate beneficial for truck box manufacturing?
A: Coiled stock allows for continuous fabrication processes. Manufacturers can unroll the FRP Plate, cut it to the exact length required for a specific truck box, and immediately bond it to the substrate (like plywood) to create the sandwich panel. This reduces waste, speeds up production, and ensures a seamless lining without unnecessary joints.
Q: Do truck boxes use transparent or opaque FRP plates?
A: For standard cargo containment, opaque plates are the industry standard. The primary function of a truck box is to enclose and protect the cargo from the elements and theft. Therefore, the Fiberglass Plate used is typically solid in color—commonly white, gray, or black—to block UV light and conceal the contents. While the material can be made translucent, it is rarely required for general freight boxes.

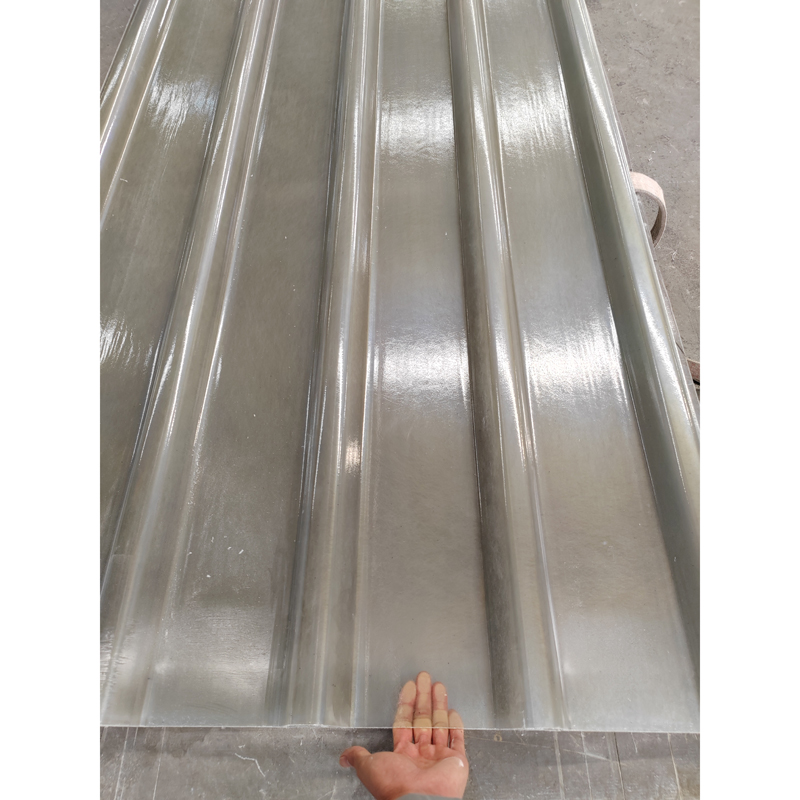

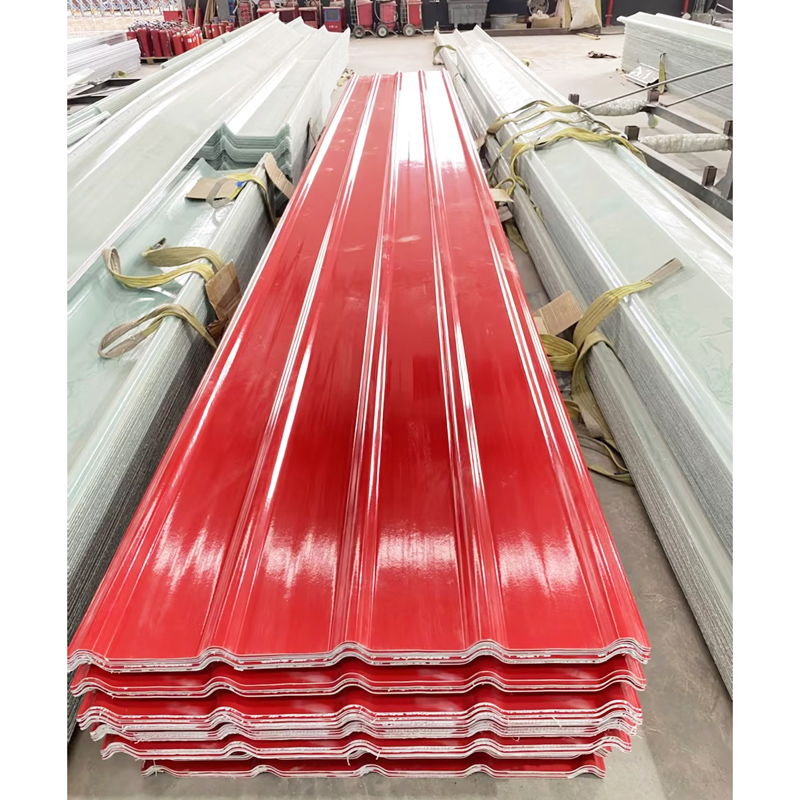

Moving from the walls of a truck to the roof of a building or a trailer, the demands on the material change. Here, we require weather resistance, structural spanning capability, and sometimes, the transmission of natural light.
Q: Are FRP roofs always flat?
A: No. While Fiberglass Plate can be used as a flat sheet, for roofing applications it is most often formed into corrugated or wavy shapes. This corrugation provides several key benefits:
Increased Strength: The waves act like girders, allowing a thinner 2mm FRP Plate or 3mm FRP Plate to span greater distances between roof purlins without sagging.
Water Runoff: The channels direct rainwater and debris efficiently toward the gutters.
Aesthetics: The profile can match traditional metal roofing sheets for a cohesive look.
The span between roof supports dictates the required thickness of the GRP Plate.
For smaller spans or applications where the roof will be fully supported, a 1.5mm FRP Plate in a corrugated profile might suffice.
For standard industrial or agricultural roofing with standard purlin spacing, a 2mm GRP Plate is the most common choice, offering a robust balance of weight and load-bearing capacity.
For high-traffic areas, regions with heavy snow load, or very wide spans, a 3mm FRP Plate is necessary. This thickness provides the rigidity required to prevent deformation under extreme weight.
One of the most significant advantages of Fiberglass Plate over metal roofing is the ability to transmit light.
Q: When should you use transparent vs. opaque FRP sheets for a roof?
A: The decision is purely based on the need for natural illumination.
Opaque Roofs: Standard warehouses, animal shelters, and truck trailer roofs utilize opaque sheets. They are designed to insulate, protect, and provide a sealed environment. Common colors include white (to reflect heat), gray, blue, red, brown, or yellow to match branding or existing structures.
Translucent/Transparent Roofs: In workshops, warehouses, or agricultural buildings, installing "light panels" made from transparent FRP Plate alongside opaque metal or FRP sheets allows for natural daylighting. This reduces electricity costs during the day. A 2mm GRP Plate that is translucent can be used specifically for these skylight panels, matching the profile of the adjacent opaque sheets.
Beyond mechanical properties, the visual aspect of FRP Plate and GRP Plate is a major selling point for architects and fleet managers.
Q: Can FRP plates be made in specific colors?
A: Yes, absolutely. The color is not just a paint coating; it is integrated into the resin matrix during manufacturing. This means the color runs through the entire thickness of the Fiberglass Plate, making it resistant to chipping and fading.
For Truck Boxes: Standard colors are white and light gray, which keep the interior bright and clean.
For Roofing and Cladding: The palette expands significantly. Manufacturers can produce GRP Plate in a vast array of colors, including white, gray, blue, red, brown, and yellow. This allows buildings to adhere to strict aesthetic codes or corporate branding requirements. A brown 3mm FRP Plate might be used for a rustic agricultural building, while a red 2mm GRP Plate could match a company’s logo on a canopy.
The surface can be smooth on one side (gel-coated) for a high-quality finish, or matte for better paint adhesion if the part is to be painted later. As discussed regarding roofing, the level of light transmission can be precisely controlled:
Opaque: 0% light transmission. Used for truck boxes and standard roofing.
Translucent: Allows light to pass through diffusely, eliminating glare while brightening a space. Ideal for skylights.
Transparent: Clear sheets, though less common in structural GRP (more common in acrylic/polycarbonate), can be achieved for specific see-through applications.
To help you choose the correct material, let's break down the common specifications for each thickness.
Primary Use: Lightweight liners, secondary barriers, decorative cladding, and core material in thin sandwich panels.
Properties: Highly flexible, excellent surface finish, low weight.
Common Formats: Available in rolls (coils) for continuous application.
Color/Finish: Usually white or off-white, opaque.
Primary Use: The standard for truck box interior walls and ceilings. Also used for lightweight corrugated roofing in non-critical spans.
Properties: Excellent balance of flexibility and impact strength. Resists punctures from typical cargo.
Common Formats: Available in both flat sheets and rolls (coils).
Color/Finish: Opaque white or gray; smooth gel-coated finish for hygiene.
Primary Use: Heavy-duty truck floors, sidewall skins, and standard corrugated roofing.
Properties: High stiffness, good load distribution, excellent fastener holding power. The go-to thickness for general construction and transportation.
Common Formats: Typically supplied in flat sheets or corrugated profiles.
Color/Finish: Opaque for structural use (white/gray); translucent for skylight panels (clear/white).
Primary Use: Extreme heavy-duty applications such as truck bed floors, dock plates, industrial flooring, and wide-span roofing in high snow-load regions.
Properties: Maximum rigidity, extremely high impact resistance, virtually no flex under load in standard applications.
Common Formats: Heavy-duty flat sheets or deep-profile corrugated sheets.
Color/Finish: Opaque (any color), often with a non-slip surface texture added if used for walkways.
To consolidate the information, here are the most common questions regarding Fiberglass Plates for truck and roof applications.
Q: What is the difference between FRP and GRP?
A: Technically, they are the same material. FRP stands for Fiber-Reinforced Plastic, while GRP stands for Glass-Reinforced Plastic. GRP specifies that the fiber used is glass. In industry vernacular, they are interchangeable when referring to fiberglass composites.
Q: Can I use a 1.2mm GRP Plate for my truck floor?
A: It is not recommended for the floor unless it is laminated over a very sturdy, thick substrate. The floor endures the heaviest abrasion and point loads. A 3mm FRP Plate or at minimum a 2mm FRP Plate is required for floor applications to prevent cracking under heavy pallet jacks or cargo.
Q: How do I choose between a 2mm and a 3mm FRP Plate for a roof?
A: Check the spacing of your roof supports (purlins). If the spacing is standard (e.g., 2-3 feet apart), a 2mm GRP Plate in a corrugated profile is usually sufficient. If the spacing is wider, or if the roof is in an area with heavy snow load, upgrading to a 3mm FRP Plate provides a safety margin against sagging and collapse.
Q: Will the color of my GRP Plate fade in the sun?
A: High-quality GRP Plate uses UV-stabilized resins and pigments integrated into the material. While some very slight fading can occur over many years, quality FRP is highly resistant to UV degradation and color change, far more so than painted surfaces.
Q: Is the 1.5mm FRP Plate for truck boxes waterproof?
A: Yes, one of the primary reasons for using Fiberglass Plate in truck boxes is its impermeability. It will not rot, rust, or absorb moisture. When used in a sandwich panel, it protects the core material (like plywood) from water ingress, drastically extending the life of the truck body.
Q: Can I get a corrugated sheet in 1.2mm thickness?
A: While possible, it is less common. Corrugated sheets for roofing typically start at 1.5mm GRP Plate for light-duty sheds, with 2mm and 3mm being the standards for permanent structures. The 1.2mm gauge is generally reserved for flat applications where the substrate provides the rigidity.
The versatility of FRP Plate and GRP Plate is unmatched in the transportation and construction industries. By understanding the specific demands of your project—whether it is building a durable, moisture-proof truck box or installing a weather-resistant, naturally lit roof—you can select the perfect material.
For truck boxes, the combination of 1.2mm FRP Plate and 1.5mm FRP Plate offers lightweight, durable, and opaque liners that are easily bonded to core materials. For heavy-duty structural needs, 2mm FRP Plate and 3mm FRP Plate provide the necessary rigidity.
In roofing, the choice of thickness—from 1.5mm GRP Plate to 3mm GRP Plate—combined with the choice between corrugated and flat profiles, and the decision between opaque or transparent finishes, allows for complete design freedom. Whether you need a standard white roof, a blue corrugated canopy, or translucent skylights to save energy, fiberglass reinforced plates offer a solution that is built to last.
By leveraging the right thickness and finish, engineers and builders can create structures and vehicles that are lighter, stronger, and more resistant to the elements than traditional materials, ensuring a superior return on investment over the lifespan of the product.
