In the world of refrigerated transport and temperature-controlled logistics, the integrity of the insulation system is paramount. The commercial vehicle industry—specifically thermo truck bodies—demands materials that are not only lightweight and durable but also offer superior thermal efficiency and hygiene. Among the most critical components in constructing these vehicles is the Fiberglass Sheet for Thermo Truck Body.
Whether you are a manufacturer of refrigerated trucks, a repair workshop, or a fleet manager looking to understand the materials used in your assets, selecting the correct laminate thickness is crucial. This article delves deep into the specifications, benefits, and applications of the FRP Sheet for Thermo Truck Body, specifically focusing on the 1.5mm, 2mm, and 3mm thickness variants available in roll form.
Thermo truck bodies, commonly known as refrigerated trucks or reefers, require a unique construction method to maintain consistent internal temperatures. The standard method involves creating "sandwich panels." In this construction, a core insulating material—such as Extruded Polystyrene (XPS), Polyurethane (PU), or Expanded Polystyrene (EPS)—is laminated between two external skins.
The external skin must withstand harsh road conditions, temperature fluctuations, and impacts while remaining easy to clean. This is where White Fiberglass Sheet for Thermo Truck Body excels. Fiberglass Reinforced Plastic (FRP) offers an unmatched combination of strength-to-weight ratio, moisture resistance, and structural rigidity.

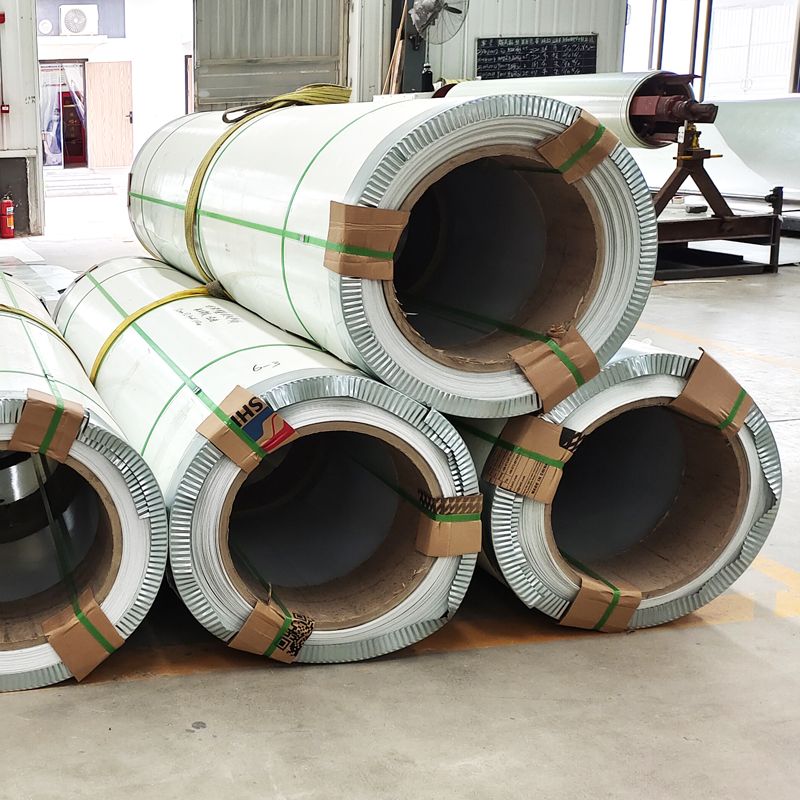

Manufacturers often source these materials in roll formats to streamline the lamination process. A Fiberglass Sheet Roll for Thermo Truck allows for continuous lamination, reducing seams and potential points of thermal leakage.
When selecting a FRP Sheet for Thermo Truck Body, thickness is not merely a number; it dictates the panel's weight, impact resistance, and flexibility during installation. The three primary thicknesses available cater to different stress points within a thermo truck body.
The 1.5mm fiberglass sheet for Thermo Truck Body is the lightest option in this category. It is primarily used for interior linings or sidewalls where weight savings are critical. Due to its flexibility, it conforms well to curved surfaces. However, it is generally recommended for applications where impact risk is low, such as the roof interior or non-load-bearing walls.

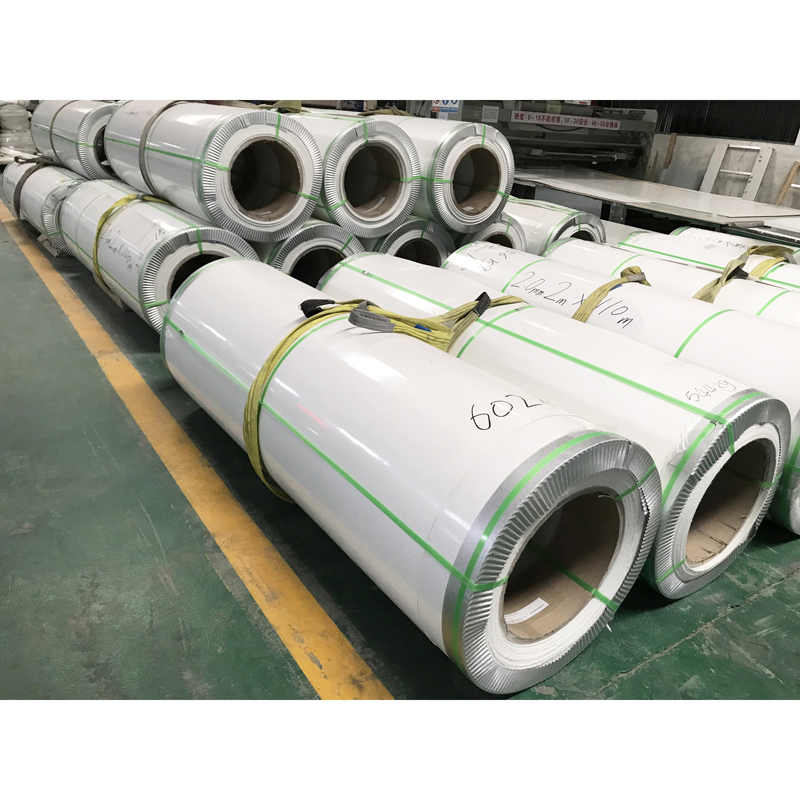

The 2mm fiberglass sheet for Thermo Truck is widely considered the "gold standard" for thermo truck body construction. This thickness provides an excellent balance between rigidity and weight. It offers sufficient impact resistance to withstand loading and unloading of pallets and cargo, while remaining light enough to keep the vehicle’s Gross Vehicle Weight (GVW) within legal limits.
For floor panels and external sidewalls that face the highest risk of impact, the 3mm fiberglass sheet for Thermo Truck Body is the ideal choice. This thickness offers superior puncture resistance and structural integrity. It is often used in high-wear areas to ensure the longevity of the truck body, even under the most demanding operational conditions.
The efficiency of mass production in thermo truck manufacturing relies heavily on the format of the raw materials. Instead of small, discrete sheets, manufacturers prefer the FRP Sheet Roll for Thermo Truck.
Roll Length: Typically supplied in rolls ranging from 60 meters to 120 meters per roll.
Width: Variable widths are available to match the standard sizes of insulation cores (XPS, PU, EPS) to minimize waste.
Surface Finish: High-gloss white finish for easy cleaning and reflectivity, improving interior lighting efficiency.
Using a Fiberglass Sheet Roll for Thermo Truck allows for automated lamination processes. The continuous roll feeds directly into pressing machines where it is bonded to the insulation core using high-strength adhesives or through a chemical reaction during the foaming process (in the case of PU).
The performance of a thermo truck body is defined by the synergy between the FRP skin and the core. The White FRP Sheet for Thermo Truck Body acts as a protective barrier for these sensitive insulation materials.
PU is the premium choice for high-performance thermo trucks. It has the highest insulation value (R-value) per inch. When combined with a 2mm fiberglass sheet for Thermo Truck Body, PU creates a seamless, high-strength panel often used in the food and pharmaceutical logistics industries.
XPS is known for its excellent compressive strength and moisture resistance. It is a popular core material for floors and sidewalls. Pairing XPS with a 3mm fiberglass sheet for Thermo Truck Body creates a robust panel capable of handling heavy forklift traffic.
EPS is a cost-effective insulation option with good thermal properties. It is often used in less demanding applications or for medium-duty trucks. The 1.5mm fiberglass sheet for Thermo Truck Body is frequently bonded to EPS for interior partitions where weight reduction is the priority.
To provide a clearer understanding of how to choose these materials, we have structured a detailed Q&A section addressing the most common queries from manufacturers and repair specialists.
A: The use of a White FRP Sheet for Thermo Truck Body is not merely aesthetic. White offers high light reflectivity, which reduces the need for excessive interior lighting, saving battery power. More importantly, white surfaces make it easier to spot dirt, contamination, or mold. In the food transport industry, hygiene is critical. The white surface allows for easy visual inspection and cleaning, ensuring compliance with health and safety regulations.
A: The choice depends entirely on the application location within the truck body.
1.5mm fiberglass sheet for Thermo Truck Body: Use this for interior ceiling linings or thin partitions where weight savings are essential and impact risks are minimal.
2mm fiberglass sheet for Thermo Truck: This is the standard for sidewalls and external roofs. It offers a perfect balance for general-purpose refrigerated transport.
3mm fiberglass sheet for Thermo Truck Body: This is mandatory for flooring. It provides the necessary impact resistance to survive pallet jacks and heavy cargo without delaminating or puncturing.
A: A Fiberglass Sheet Roll for Thermo Truck offers significant manufacturing advantages. First, it reduces the number of seams. Every seam is a potential thermal bridge or point of moisture ingress. Continuous rolls allow for seamless panels up to 120 meters in length, which is ideal for long trailer sidewalls. Second, it increases efficiency. In a continuous lamination press, a roll feeds directly into the machine, eliminating downtime associated with swapping out individual sheets. This results in a stronger, more homogenous sandwich panel.
A: Absolutely. FRP Sheet for Thermo Truck Body is specifically engineered to perform in sub-zero environments. Unlike metals, FRP does not contract significantly in cold weather, which prevents stress fractures at the joints. Furthermore, the material does not corrode. When transporting frozen goods at -20°C or lower, a White Fiberglass Sheet for Thermo Truck Body maintains its structural integrity and smooth surface, ensuring that ice does not adhere to the walls, which can happen with metal liners.
A: Quality White FRP Sheet for Thermo Truck Body products come with a specialized backing (often a non-woven polyester veil or a textured surface) designed to optimize adhesion to PU, XPS, and EPS foam. This backing ensures that the adhesive or the foaming PU bonds chemically and mechanically to the sheet. If the backing is insufficient, the sheet may delaminate over time due to the vibration and thermal cycling experienced by a thermo truck. For structural applications like floors, the 3mm fiberglass sheet for Thermo Truck Body often features a non-slip surface on the wear side and a high-bond backing on the insulation side.
A: Yes, repairability is one of the key benefits of using Fiberglass Sheet for Thermo Truck Body. Unlike metal panels that require welding or full replacement, FRP can be repaired using polyester or epoxy resin and fiberglass matting. However, to maintain the structural integrity of the sandwich panel, it is essential to match the thickness of the repair to the original material. For a hole in a 2mm fiberglass sheet for Thermo Truck, a repair kit that builds back up to 2mm thickness is required to ensure the panel regains its original strength.
Understanding how the Fiberglass Sheet Roll for Thermo Truck transforms into a finished truck body helps appreciate the precision required in material selection.
Surface Preparation: The FRP roll is unrolled and cleaned. The backing side (the side that will bond to the insulation) is often pre-treated to maximize adhesion.
Adhesive Application: A specialized adhesive is applied to the FRP sheet and the insulation core (XPS, PU, or EPS). In high-volume manufacturing, the PU foam is injected in a liquid state between two FRP sheets, expanding to fill the cavity and bonding chemically to the White FRP Sheet for Thermo Truck Body.
Lamination: The core is sandwiched between the top and bottom FRP sheets. For thermo trucks, the outer skin is often a 3mm fiberglass sheet for Thermo Truck Body for durability, while the inner skin might be a 1.5mm fiberglass sheet for Thermo Truck Body for weight savings.
Pressing and Curing: The sandwich panel is placed under a hydraulic press or fed through a continuous laminator. Heat and pressure are applied to cure the adhesive, creating a monolithic panel.
Trimming and Assembly: Once cured, the panels are trimmed to size and assembled into the final thermo truck body structure.
Selecting the correct Fiberglass Sheet for Thermo Truck Body is a critical decision that impacts the lifespan, safety, and operational efficiency of a refrigerated vehicle. The thickness—whether 1.5mm fiberglass sheet for Thermo Truck Body, 2mm fiberglass sheet for Thermo Truck, or 3mm fiberglass sheet for Thermo Truck Body—must be matched to the specific application to ensure optimal performance.
For manufacturers, sourcing these materials in a Fiberglass Sheet Roll for Thermo Truck format (60m-120m rolls) ensures manufacturing efficiency, reduces waste, and minimizes seams in the final assembly. The combination of a White Fiberglass Sheet for Thermo Truck Body with high-quality insulation cores like XPS, PU, or EPS results in a sandwich panel that offers superior thermal insulation, structural rigidity, and hygiene compliance.
Whether you are constructing a new fleet of reefer trucks or repairing existing bodies, investing in high-quality White FRP Sheet for Thermo Truck Body ensures that your cargo—be it fresh produce, pharmaceuticals, or frozen goods—arrives in perfect condition, mile after mile.
