In the demanding world of freight transportation, every component of a dry van truck body must balance three conflicting demands: lightweight construction for fuel efficiency, extreme rigidity for cargo protection, and impact resistance for long-term durability. Traditional materials like plywood, aluminum, and steel-reinforced sandwich panels have served the industry for decades, but they come with inherent compromises—water absorption, corrosion, denting, and high maintenance costs.

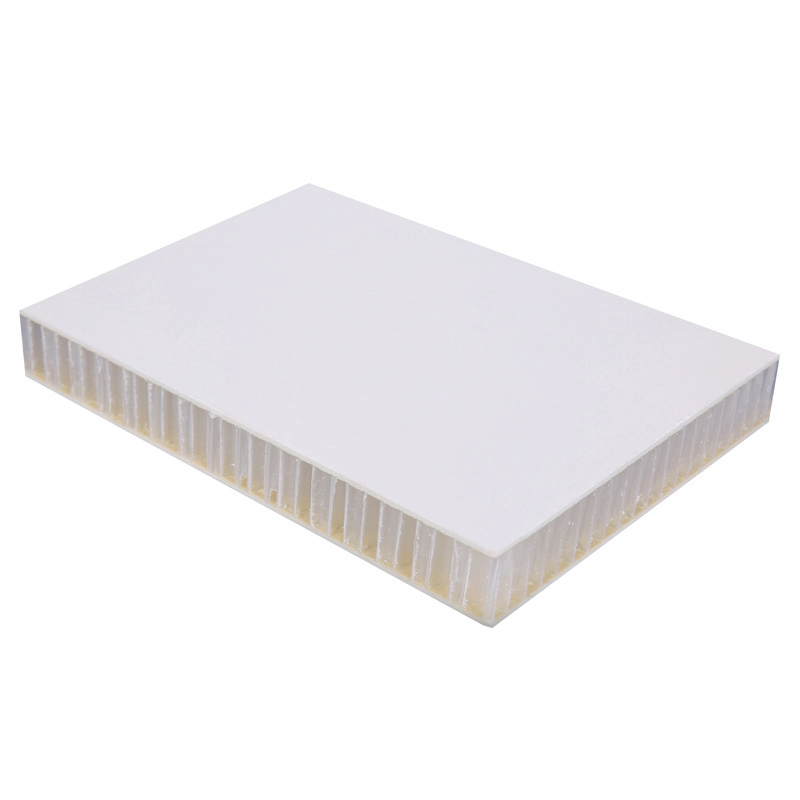

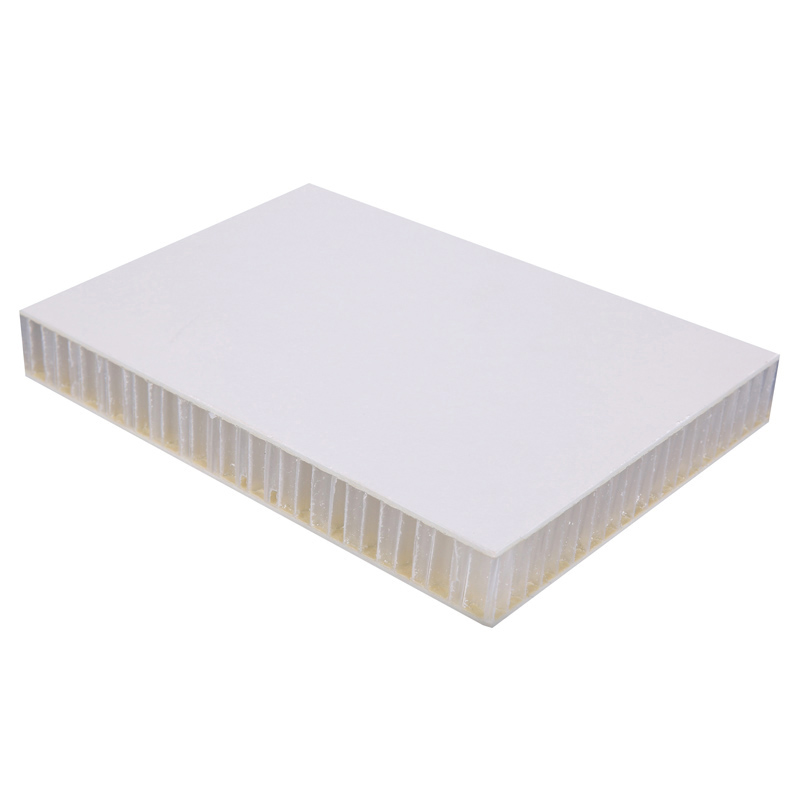

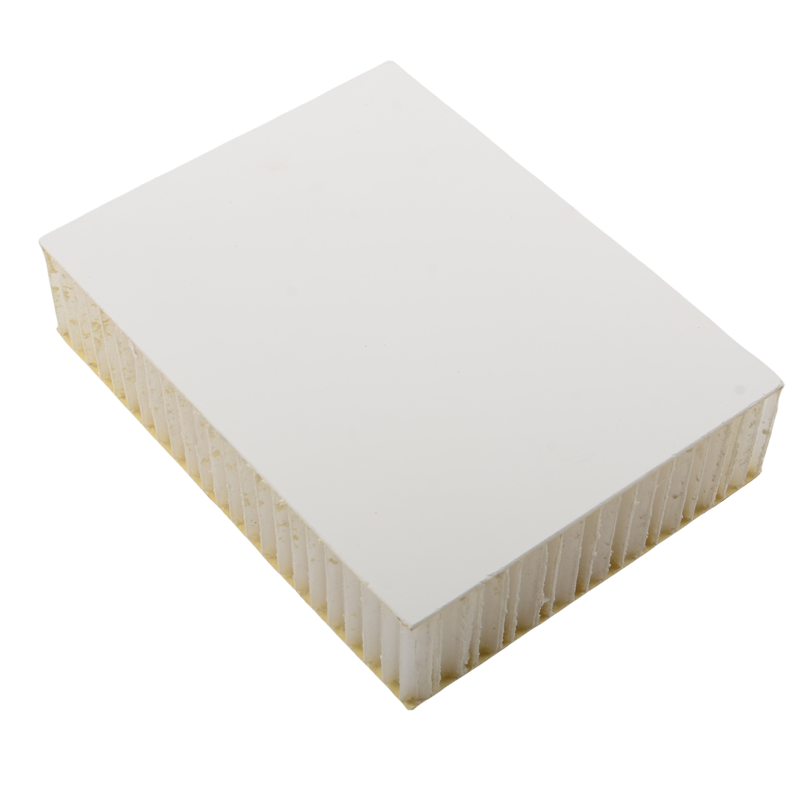

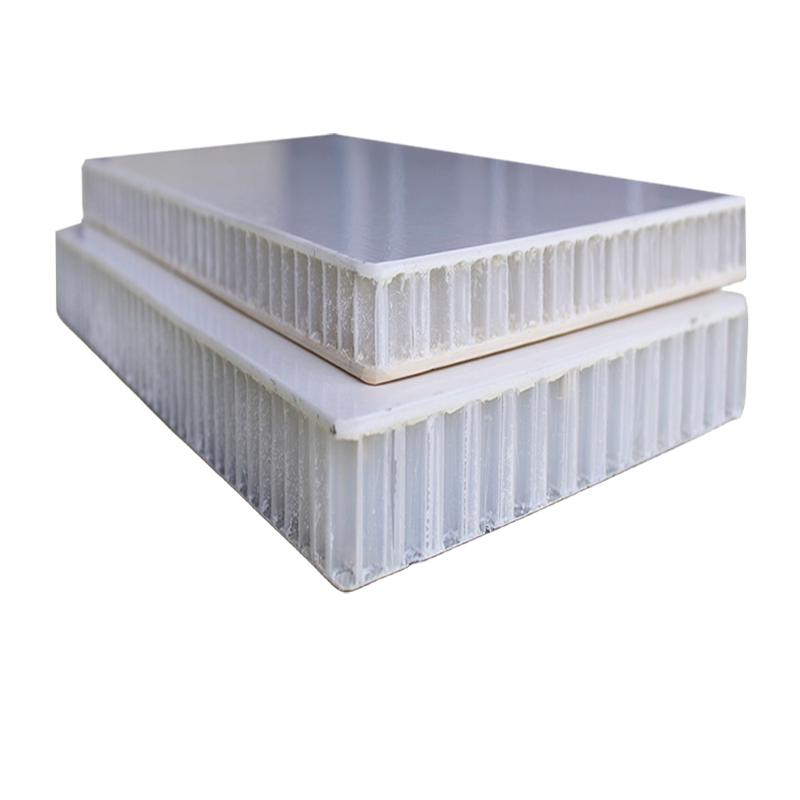

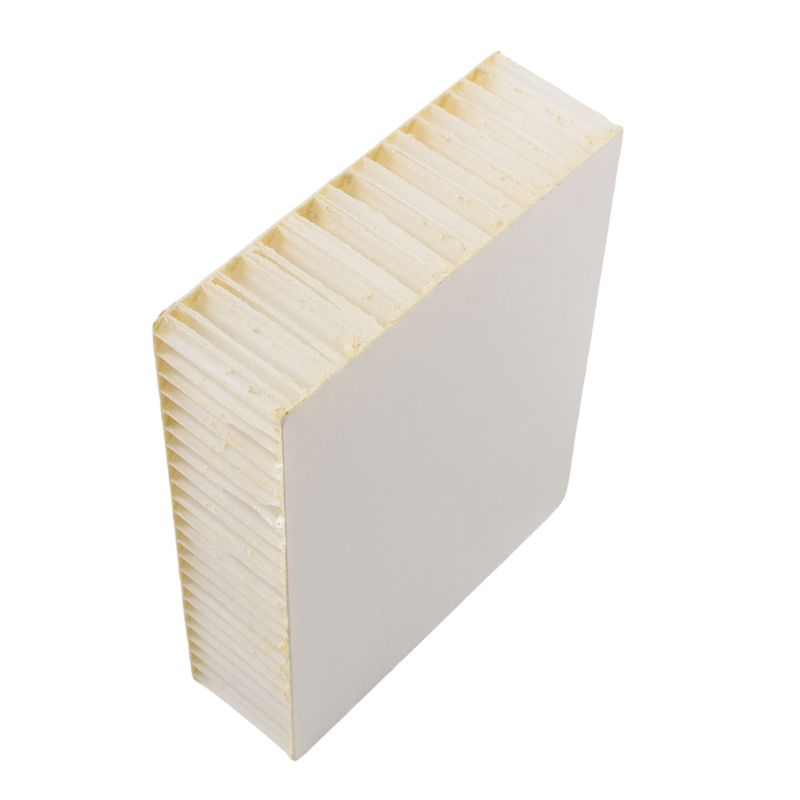

Enter the fiberglass honeycomb panel. Engineered with a high-density fiberglass skin and a thermoset resin-reinforced PP (polypropylene) honeycomb core, this next-generation composite panel is rapidly becoming the gold standard for dry van truck body construction. Available in five precision-engineered thicknesses—10mm fiberglass honeycomb panel, 15mm fiberglass honeycomb panel, 20mm fiberglass honeycomb panel, 25mm fiberglass honeycomb panel, and 40mm fiberglass honeycomb panel—this product family delivers exceptional stiffness, superior flatness, and outstanding crash resistance.
In this detailed guide, we will explore why the fiberglass honeycomb panel for truck body applications is revolutionizing the industry, present key performance data, and answer the most common questions from fleet owners and body builders.
Before diving into specifications, it is essential to understand the structural philosophy behind a fiberglass PP honeycomb panel. Unlike solid cores or foam-filled composites, the honeycomb geometry creates an I-beam effect: the skin carries bending and compressive loads, while the vertical cell walls of the core resist shear forces. This results in a panel that is up to 50% lighter than plywood of equivalent thickness, yet significantly stiffer and more impact-resistant.
For a fiberglass honeycomb panel for dry van truck, the benefits are immediately visible:
Flatness: The thermoset bonding process ensures zero warping or delamination under thermal stress.
Stiffness: High modulus of elasticity (over 8,000 MPa in flexure) prevents sagging between sidewall posts.
Crush resistance: The honeycomb core absorbs energy progressively, reducing cargo damage during sudden braking or minor collisions.
Now, let’s break down the performance of each thickness variant.
The 10mm fiberglass honeycomb panel is the thinnest option in the series, designed primarily for non-structural interior applications where weight savings are paramount.
Thickness: 10mm ±0.2mm
Skin thickness: 1.2mm fiberglass (each side)
Core density: 80 kg/m³ PP honeycomb
Panel weight: Approximately 6.5 kg/m²
Interior sidewall liners (covering foam insulation or existing panels)
Removable bulkheads and cargo dividers
Ceiling panels where overhead clearance is limited
Repair patches for damaged plywood or aluminum liners
Despite its slender profile, the 10mm fiberglass honeycomb panel offers surprising rigidity. In a 3-point bending test with a 500 mm span, it withstands 450 N of force before exceeding a deflection of L/200 (2.5 mm). This is more than adequate for liner applications where the panel is fully supported by underlying posts or insulation.
The 15mm fiberglass honeycomb panel is the most popular choice among dry van manufacturers. It represents the perfect compromise between weight (9.2 kg/m²) and structural capability.
Flexural strength: 32 MPa
Flatness tolerance: ≤0.5 mm per meter (far superior to OSB or marine plywood)
Thermal stability: Operates from -40°C to +80°C without surface cracking
Flooring for light-duty dry vans: When supported by cross-members at 400 mm centers, a 15mm fiberglass honeycomb panel supports rolling loads up to 2,500 kg per axle.
Scuff plates (lower sidewalls): The fiberglass surface resists forklift impacts and pallet abrasion far better than painted steel.
Roof panels: Low weight reduces the trailer’s center of gravity, improving highway stability.
A common misconception is that a fiberglass honeycomb panel for truck applications must be thick to be strong. The 15mm variant disproves this. Independent tests show that a 15mm panel has a specific stiffness (stiffness per unit weight) 2.7 times higher than a 19mm hardwood plywood panel. This means you can reduce trailer weight by 300–400 kg without compromising floor or wall integrity.
Q: Can I use a 15mm fiberglass honeycomb panel as a direct replacement for 3/4-inch plywood in my dry van floor?
A: Yes, provided your cross-member spacing does not exceed 500 mm. The fiberglass honeycomb panel for dry van truck floors has a higher point-load resistance than plywood. However, for heavy forklift traffic (above 4,000 kg), we recommend moving to the 20mm or 25mm version. For most parcel delivery and light freight operations, 15mm is sufficient and offers a 40% weight reduction.
When the cargo includes palletized goods, steel drums, or machinery, the 20mm fiberglass honeycomb panel becomes the minimum recommended thickness. With a total thickness of 20mm (2.0mm skins over a 16mm PP honeycomb core), this panel bridges the gap between lightweight composite and heavy-duty structural member.
Property | Value |
|---|---|
Weight | 12.8 kg/m² |
Flatwise compression strength | 4.2 MPa |
Screw pull-out resistance (M6 bolt) | 850 N |
Impact resistance (drop test, 5 kg mass from 1 m) | No crack or core crush |
Flooring: Supports pallet jacks and forklifts with tire loads up to 3,500 kg.
Sidewalls: Eliminates the need for vertical posts on 600 mm centers—the 20mm fiberglass honeycomb panel can span 1,200 mm unsupported while maintaining a deflection of less than 5 mm under a 200 kg/m² wind load.
Rear impact doors: When combined with an aluminum frame, a 20mm panel provides excellent dent resistance against loading dock collisions.
The 25mm fiberglass honeycomb panel is an engineering solution for dry vans that require wide, uninterrupted interior spaces. Common in moving trucks, automotive parts carriers, and refrigerated dry vans (where insulation depth reduces wall thickness).
Span capability: Up to 1,800 mm unsupported as a roof panel.
Flatness guarantee: ≤0.3 mm per meter—ideal for mounting overhead roller tracks or automated loading systems.
Fire resistance: The fiberglass skins and PP core achieve a UL 94 V-0 rating (self-extinguishing).
One-piece roof panels: Eliminate seams and potential leak points. A single 25mm fiberglass honeycomb panel can span the entire width of a 2.5 m wide dry van without intermediate supports.
Sidewall posts replacement: By using 25mm panels, some manufacturers have eliminated vertical posts entirely, creating a smooth interior surface that improves airflow and simplifies cleaning.
Heavy-duty scuff plates: In dairy or meat transport, where washdowns involve high-pressure hoses and caustic chemicals, the 25mm panel’s thicker skin (2.5 mm each side) resists erosion and chemical attack.
Q: When should I upgrade from a 20mm to a 25mm fiberglass honeycomb panel for dry van truck construction?
A: The decision hinges on two factors: unsupported span length and point-load frequency. For spans under 1,200 mm and occasional forklift traffic, 20mm is adequate. However, if your dry van has a clear span (post-to-post distance) exceeding 1,500 mm, or if daily forklift traffic exceeds 200 cycles, the 25mm fiberglass honeycomb panel provides a 55% increase in flexural rigidity compared to the 20mm version. Additionally, any application involving overhead hanging racks or conveyor systems benefits from the 25mm panel’s superior screw retention.
The 40mm fiberglass honeycomb panel is not merely a panel—it is a structural element. With skins of 3.0 mm fiberglass and a 34 mm PP honeycomb core, this thickness is designed for extreme environments: heavy-haul dry vans, military logistics trailers, and intermodal shipping containers.
Weight: 22.5 kg/m² (still lighter than 25mm steel plate by a factor of 8)
Flexural modulus: 9,200 MPa
Impact resistance: Withstands a 30 kg pendulum impact at 4 m/s without core crushing
Water absorption: <0.5% by volume after 28 days immersion (tested per ASTM D570)
Full floor replacement: For dry vans carrying coil steel, concrete blocks, or heavy machinery. The 40mm fiberglass honeycomb panel distributes concentrated loads so effectively that 6,000 kg forklifts can operate without additional steel subfloors.
Rear frame reinforcement: Replace welded steel gussets with a 40mm panel bonded between the inner and outer rear door frames—reduces weight by 70 kg while increasing torsional rigidity.
Refrigerated dry van bulkheads: The thick PP core provides an R-value of approximately 3.5 per inch, reducing thermal bridging.
A: Both are sandwich composites, but the fiberglass honeycomb panel offers two distinct advantages for dry van trucks:
No galvanic corrosion: Aluminum panels react with steel trailer frames in wet environments, leading to pitting. Fiberglass skins are dielectric.
Better dent resistance: Fiberglass skins flex and rebound under point impacts, whereas aluminum skins show permanent dimpling. For a fiberglass honeycomb panel for dry van truck that frequently loads pallets sideways (scuffing), fiberglass outlasts aluminum by 3:1 in abrasion tests.
A: Yes, for light loads. A 10mm fiberglass honeycomb panel or 15mm fiberglass honeycomb panel can accept self-tapping screws for attaching rub rails, light-duty hooks, or cable ties. For heavy attachments (e.g., e-track, logistic straps), we recommend using jack nuts or potted insert hardware. The 25mm and 40mm fiberglass honeycomb panel versions have sufficient core thickness to accept expansion inserts rated up to 1,500 kg pull-out force.
A: One of the greatest advantages of any fiberglass honeycomb panel for truck body is repairability. Follow this three-step process:
Remove damaged area: Cut a rectangular patch using a circular saw with a diamond or carbide blade.
Fill core edges: Apply two-part epoxy to seal exposed honeycomb cells.
Bond patch: Use a structural adhesive (e.g., Plexus MA310) to glue a slightly oversized patch panel into the recess. Sand the surface flush. Total repair time: 1 hour. A plywood or aluminum repair would require welding or complete panel replacement.
A: Use this decision matrix based on your average daily freight:
Freight Type | Recommended Thickness |
|---|---|
Parcels, tires, empty pallets | 15mm fiberglass honeycomb panel |
Groceries, beverages (palletized, <800 kg per pallet) | 20mm fiberglass honeycomb panel |
Machinery, steel coils, heavy pallets (>1,200 kg) | 25mm fiberglass honeycomb panel |
Forklift loading/unloading (4,000 kg+ lift) | 40mm fiberglass honeycomb panel |
For a fiberglass honeycomb panel for dry van truck that will see mixed freight, most fleet managers standardize on 20mm for floors and 15mm for walls.
A: Absolutely. The fiberglass PP honeycomb panel is completely waterproof. The fiberglass skins are thermoset polyester or vinyl ester resin, which is impervious to water. The PP honeycomb core is hydrophobic. You can pressure wash the interior of a dry van built with these panels at up to 2,000 psi (140 bar) without delamination or water absorption. This is a major upgrade over plywood floors that swell and rot.
A: Favorably. A 10mm plywood liner weighs approximately 7.2 kg/m² and has a flexural modulus of roughly 3,500 MPa. The 10mm fiberglass honeycomb panel weighs less (6.5 kg/m²) but offers a flexural modulus above 7,000 MPa—twice as stiff. Additionally, the fiberglass panel will never warp due to humidity changes, ensuring your dry van’s interior remains perfectly flat for the life of the trailer.
A: Yes. Use a two-part epoxy or polyurethane adhesive designed for dissimilar materials. The surface of a fiberglass honeycomb panel for truck is chemically receptive to bonding. Unlike welding steel posts, bonded construction eliminates stress risers and reduces noise, vibration, and harshness (NVH). Many dry van manufacturers now use adhesive bonding exclusively for installing fiberglass PP honeycomb panel sidewalls and roofs.
A: The PP honeycomb core has a heat deflection temperature (HDT) of approximately 120°C (248°F). The fiberglass skins are stable to 150°C. Inside a dry van truck body, even on a 45°C day with solar gain, internal temperatures rarely exceed 70°C. The fiberglass honeycomb panel will not soften, creep, or delaminate under these conditions. For specialized applications (e.g., asphalt transport), we offer a modified resin system for up to 180°C.
Proper installation ensures you realize the full stiffness, flatness, and durability of these panels. Below are guidelines for each thickness.
10mm and 15mm panels: Cut with a carbide-tipped circular saw or a jigsaw with fine-tooth blade (10–12 TPI).
20mm, 25mm, and 40mm panels: Use a panel saw or a CNC router. For field cuts, a circular saw with a diamond blade works well. Always cut from the fiberglass skin side to prevent splintering.
Apply adhesive in continuous beads spaced 100 mm apart on all frame contact surfaces.
Clamp or weight the panel for 4 hours (room temperature cure). For winter installations, use a fast-curing winter-grade adhesive.
Pre-drill holes 1.5 mm larger than the fastener diameter.
For the 25mm fiberglass honeycomb panel and 40mm fiberglass honeycomb panel, use captive nuts or threaded inserts embedded in the core with potting compound.
Remove road grime and diesel soot using mild detergent and a soft brush. Avoid abrasive pads that could scratch the gel coat surface (if present).
Inspect sealed edges annually—particularly at wheel wells and rear door openings. Re-seal any exposed core with epoxy.
The era of waterlogged plywood, dented aluminum, and corroded steel in dry van truck bodies is ending. Fiberglass honeycomb panels—available in 10mm, 15mm, 20mm, 25mm, and 40mm thicknesses—offer a combination of stiffness, flatness, impact resistance, and weight savings that traditional materials cannot match.
Whether you are building a new fleet of dry vans, repairing damaged sidewalls, or upgrading floors for heavier payloads, there is a fiberglass honeycomb panel for truck applications perfectly suited to your needs. The fiberglass honeycomb panel for dry van truck is not just a component; it is an investment in lower operating costs, reduced downtime, and longer trailer life.
For interior liners and partitions: Choose the 10mm fiberglass honeycomb panel.
For general-purpose walls and light floors: Choose the 15mm fiberglass honeycomb panel.
For heavy-duty floors and scuff plates: Choose the 20mm fiberglass honeycomb panel.
For long-span roofs and severe duty: Choose the 25mm fiberglass honeycomb panel.
For industrial, heavy-haul, or military applications: Choose the 40mm fiberglass honeycomb panel.
Contact us today for samples, technical data sheets, and volume pricing. Upgrade your dry van to the future—fiberglass honeycomb panel.
