2000mm 2100mm 2200mm 2400mm 2600mm Wide 1.5mm 2mm 3mm Thickness White FRP Coil for Laminating with XPS Foam

What Is FRP Coil?

FRP (Fiberglass Reinforced Plastic) Coil is a high-strength, lightweight composite material made from fiberglass mats embedded in a resin matrix. It is widely used in construction, transportation, and industrial applications due to its durability, corrosion resistance, and flexibility. The White FRP Coil is particularly popular for laminating with XPS foam, providing a smooth, UV-resistant, and aesthetically pleasing surface.

Available in various widths (2000mm FRP Coil, 2100mm FRP Coil, 2200mm FRP Coil, 2400mm FRP Coil, 2600mm FRP Coil) and thicknesses (1.5mm FRP Coil, 2mm FRP Coil, 3mm FRP Coil), this material offers excellent structural reinforcement while remaining lightweight.

How Is FRP Coil Produced?

The manufacturing process of FRP Coil involves several key steps:

1. Fiberglass Mat Selection – Different fiberglass mat types are used, including:

• Chopped Strand Mat (CSM) – Provides uniform strength and is cost-effective.

• Continuous Strand Mat (CRM) – Offers higher tensile strength for demanding applications.

• Woven Roving (WR) – Enhances rigidity and impact resistance.

2. Resin Application – A thermosetting resin (typically polyester or vinylester) is applied to saturate the fiberglass mat.

3. Curing & Solidification – The resin-coated fiberglass passes through a heating chamber to cure and harden.

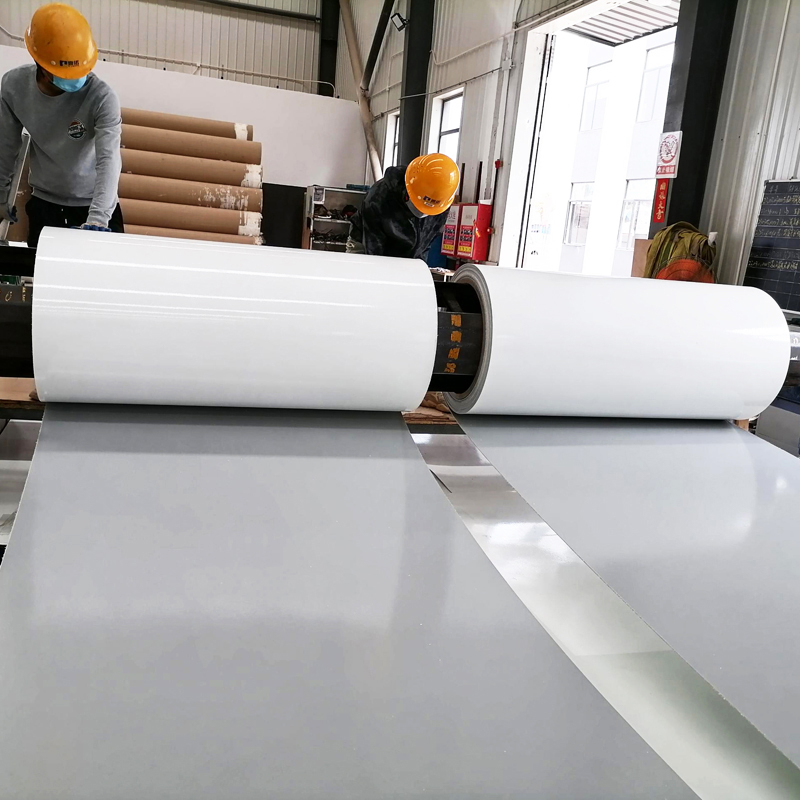

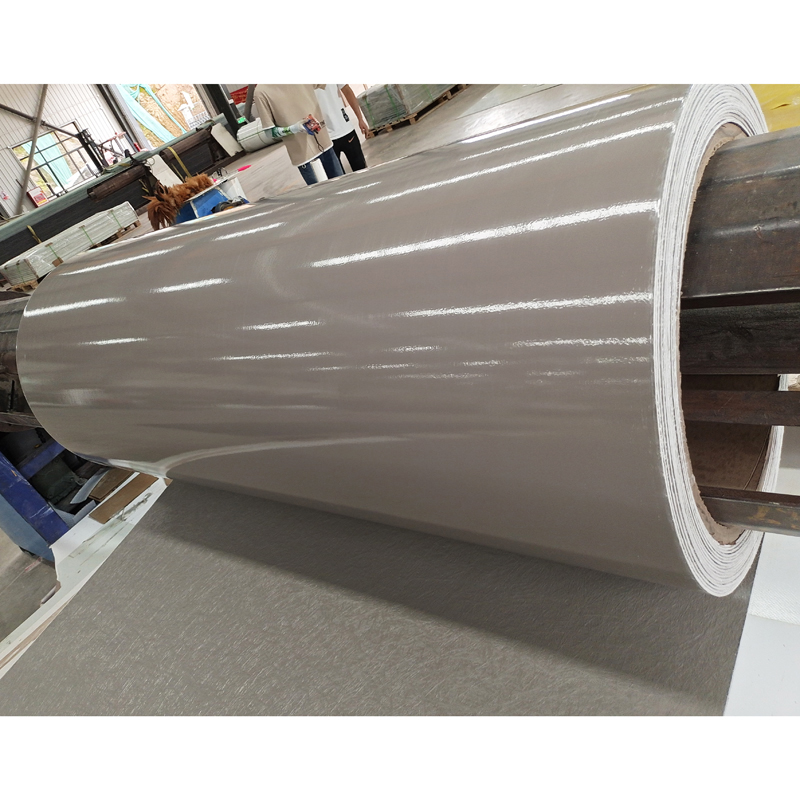

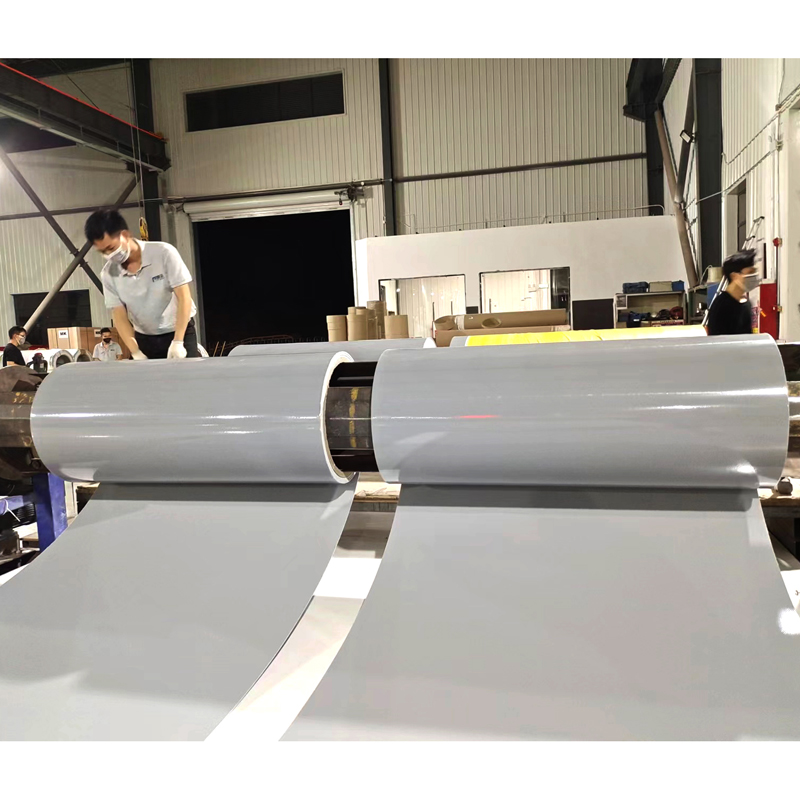

4. Cooling & Coiling – The cured FRP Coil is cooled and rolled into large coils for easy transportation and storage.

The White FRP Coil is treated with a UV-resistant topcoat to ensure long-term color stability and gloss retention.

Fiberglass Mat Types, Colors, and Finishes

Depending on the application, FRP Coil can be manufactured with different fiberglass reinforcements:

• CSM (Chopped Strand Mat) – Ideal for general-purpose laminating.

• CRM (Continuous Strand Mat) – Used where higher mechanical strength is needed.

• WR (Woven Roving) – Best for structural reinforcement.

The White FRP Coil is available in multiple gloss levels:

• High Gloss – Provides a sleek, reflective finish.

• Semi-Gloss – Offers a balanced shine and texture.

• Matte Finish – Ideal for non-reflective applications.

How Does FRP Coil Bond with XPS Foam?

FRP Coil is widely used for laminating XPS (Extruded Polystyrene) foam due to its excellent adhesion properties. The process involves:

1. Surface Preparation – The XPS foam is cleaned and primed for better bonding.

2. Adhesive Application – A specialized adhesive is applied to the foam surface.

3. FRP Coil Lamination – The White FRP Coil is rolled onto the XPS foam under controlled pressure.

4. Curing – The bonded composite is left to cure, forming a rigid, durable panel.

The result is a lightweight yet strong composite panel with enhanced structural integrity, weather resistance, and a smooth finish.

Key Applications of FRP-Coil-Laminated XPS Panels

The combination of FRP Coil and XPS foam creates versatile panels used in:

• Architectural Cladding – Provides a durable, UV-resistant exterior surface.

• Cold Storage & Refrigeration – Offers excellent thermal insulation.

• Truck & Trailer Linings – Lightweight yet strong for transportation use.

• Industrial Partitions – Resistant to chemicals and moisture.

• Signage & Displays – Smooth, paintable surface for advertising boards.

Why Choose Our FRP Coil?

Our FRP Coil is available in multiple widths (2000mm, 2100mm, 2200mm, 2400mm, 2600mm) and thicknesses (1.5mm, 2mm, 3mm), ensuring the perfect fit for your project. The White FRP Coil is UV-stabilized, ensuring long-lasting color retention and durability.

Key Benefits:

✔ High strength-to-weight ratio
✔ Excellent corrosion & weather resistance
✔ Smooth, paintable surface
✔ Easy installation & laminating compatibility

Whether you need 1.5mm FRP Coil for lightweight applications or 3mm FRP Coil for heavy-duty reinforcement, we provide top-quality materials tailored to your needs.

Conclusion

FRP Coil is an essential material for laminating XPS foam, offering durability, flexibility, and a premium finish. Available in 2000mm, 2100mm, 2200mm, 2400mm, and 2600mm widths with 1.5mm, 2mm, and 3mm thickness options, our White FRP Coil ensures superior performance in construction and industrial applications.

For high-quality FRP Coil solutions, contact us today!
