In the demanding world of cold chain logistics, every component of a refrigerated truck body must perform flawlessly under extreme conditions. Traditional metal-skinned panels are prone to corrosion, thermal bridging, and weight inefficiencies. Enter the Fiberglass (FRP/GRP) XPS Foam Composite Panel for Refrigerated Truck Body — a superior sandwich-structured material engineered for durability, insulation, and longevity.

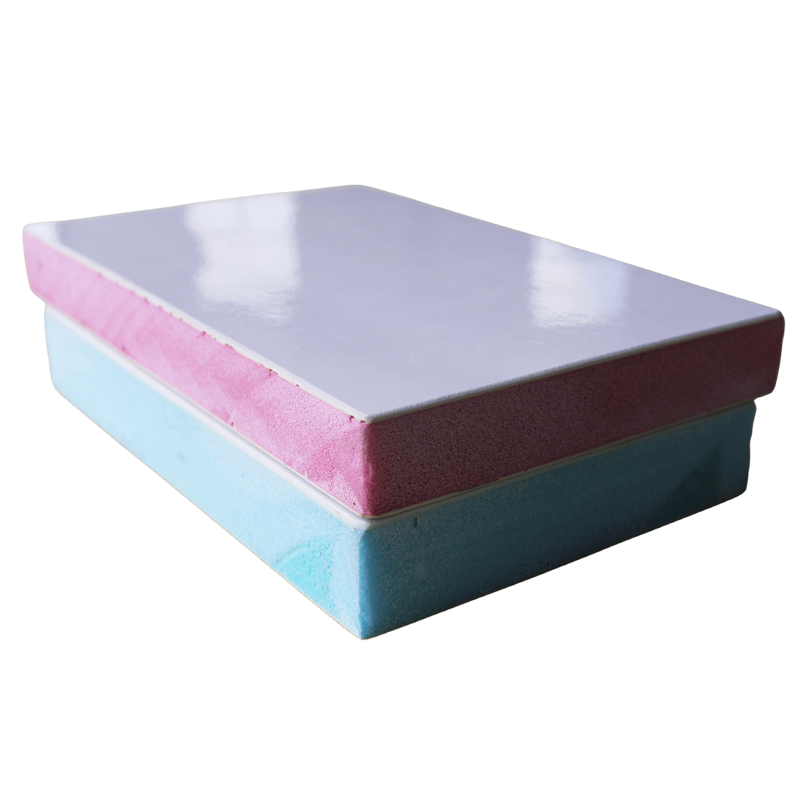

This advanced composite panel consists of two outer layers of high-strength fiberglass-reinforced plastic (FRP/GRP) bonded permanently to a rigid extruded polystyrene (XPS) foam core. The result is a lightweight, thermally efficient, and impact-resistant panel that redefines standards for refrigerated transport.
Below, we explore every critical aspect of this product, from material science to real-world application, using a structured format that includes detailed sections and a comprehensive Q&A.

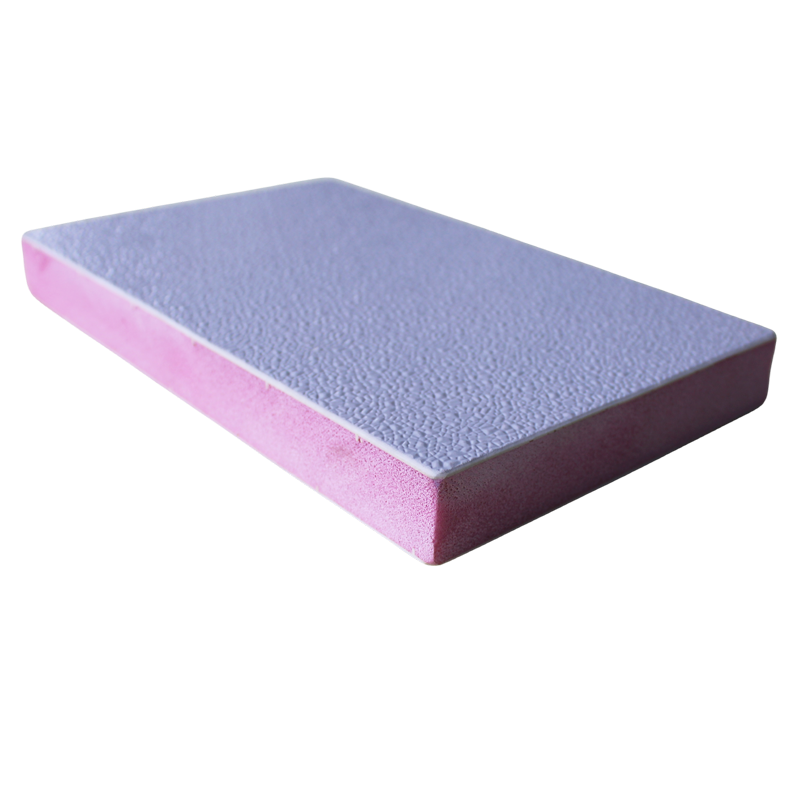

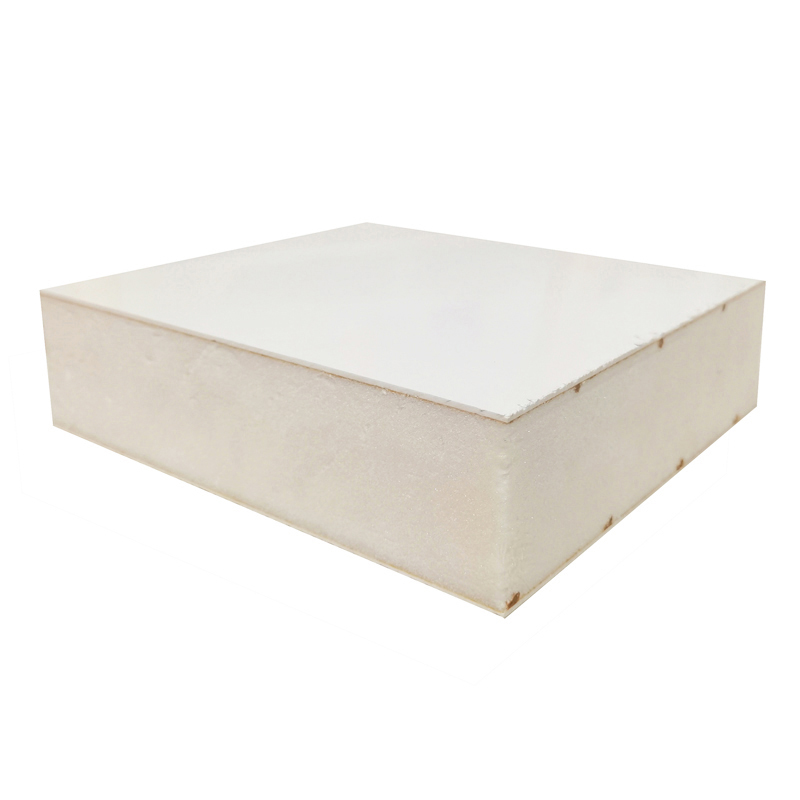

The Fiberglass Composite Panel is manufactured using a closed-mold lamination process. The outer skins are made from either FRP Composite Panel (Fiberglass Reinforced Plastic) or GRP Composite Panel (Glass Reinforced Plastic) — two terms for essentially the same high-performance material. These skins are bonded under high pressure to a core of extruded polystyrene (XPS) foam.
Outer Layer (FRP/GRP): Provides exceptional impact resistance, chemical resistance, and weatherability. It does not rust, rot, or absorb moisture.
Core Layer (XPS): Closed-cell foam delivers high compressive strength and an R-value that remains stable even in high humidity.
Adhesive Bond: A structural polyurethane or epoxy adhesive ensures zero delamination under vibration or thermal cycling.

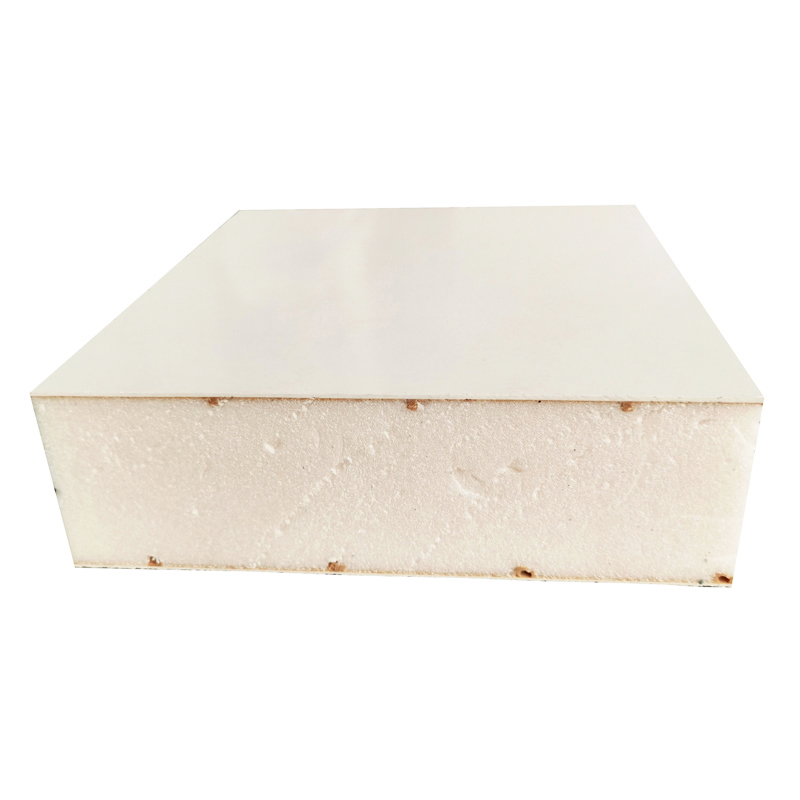

This sandwich construction creates a Fiberglass XPS Composite Panel that outperforms plywood-metal hybrids in every key metric: weight, insulation, and longevity.

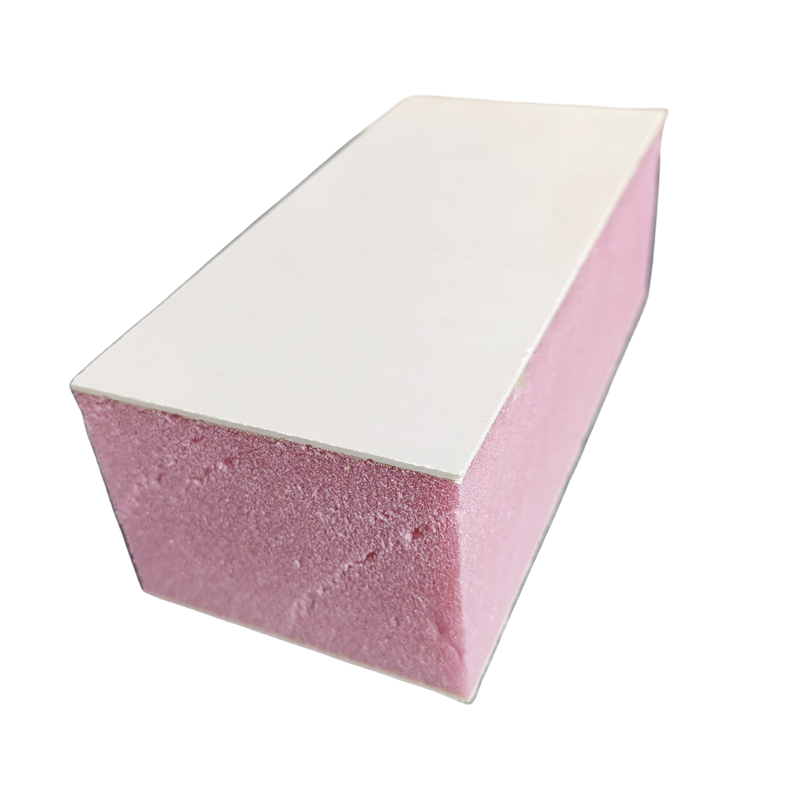

Unlike traditional panels that use polyurethane foam (which can degrade over time), the FRP XPS Composite Panel features a closed-cell XPS core with a uniform cell structure. This translates to:
Low Thermal Conductivity: λ = 0.028–0.032 W/m·K.
Moisture Resistance: XPS absorbs less than 0.3% water by volume, even after long-term immersion. This prevents thermal drift — a common issue in refrigerated truck bodies.
Stable R-Value: The insulation performance does not degrade with age or freeze-thaw cycles.
Because the GRP XPS Composite Panel is a monolithic structure (no metal studs or fasteners penetrating the core), thermal bridges are virtually eliminated. This reduces condensation inside the cargo area, protecting perishable goods like pharmaceuticals, fresh produce, and frozen meats.
Key Benefit: Lower refrigeration unit runtime → reduced fuel consumption → lower total cost of ownership.
The Fiberglass Composite Panel for Truck Body is engineered to withstand the daily abuse of loading docks, forklifts, and shifting cargo. The FRP/GRP skin has a tensile strength of over 150 MPa and resists puncture from sharp objects. Even when the outer skin is scratched, the underlying XPS core remains protected because the fiberglass does not propagate cracks.
Refrigerated trucks operate on uneven roads, subjecting panels to constant vibration. The FRP Composite Panel for Truck Body exhibits excellent fatigue life. Unlike aluminum or steel, FRP/GRP does not develop stress fractures. The XPS foam core acts as a damper, absorbing vibrational energy and reducing noise inside the cabin and cargo hold.
The panel is tested from -40°C to +80°C. No delamination or warping occurs because the coefficient of thermal expansion of FRP/GRP closely matches that of XPS. This makes the GRP Composite Panel for Truck Body ideal for refrigerated applications that experience door openings in hot climates or freezer operations.
Every kilogram saved on the truck body translates directly into higher payload capacity or lower fuel consumption. A typical Fiberglass XPS Composite Panel weighs approximately 6–8 kg/m² (depending on skin thickness), which is 40–50% lighter than a plywood-metal composite panel of equal thickness.
For a 12-meter semi-trailer, switching from traditional panels to FRP XPS Composite Panels can save over 800 kg in tare weight. That means:
Higher revenue: Carry more goods per trip.
Lower emissions: Reduced CO₂ footprint per ton-mile.
Compliance: Meets tightening weight regulations in EU and North America.
The outer surface of the GRP Composite Panel is a smooth gel coat (ISO 846-approved) that is non-porous, preventing bacterial growth or mold accumulation. It is FDA-compliant for direct food contact and can be sanitized with bleach, peracetic acid, or high-pressure steam.
Small scratches or gouges can be repaired on-site using FRP patch kits. This is impossible with aluminum or stainless steel, which require welding or panel replacement. Thus, the Fiberglass Composite Panel for Refrigerated Truck offers a lower lifetime maintenance cost.
Manufacturers can produce the FRP Composite Panel for Refrigerated Truck in:
Thicknesses: 25 mm to 150 mm (1” to 6”).
Lengths: Up to 18 meters without joints.

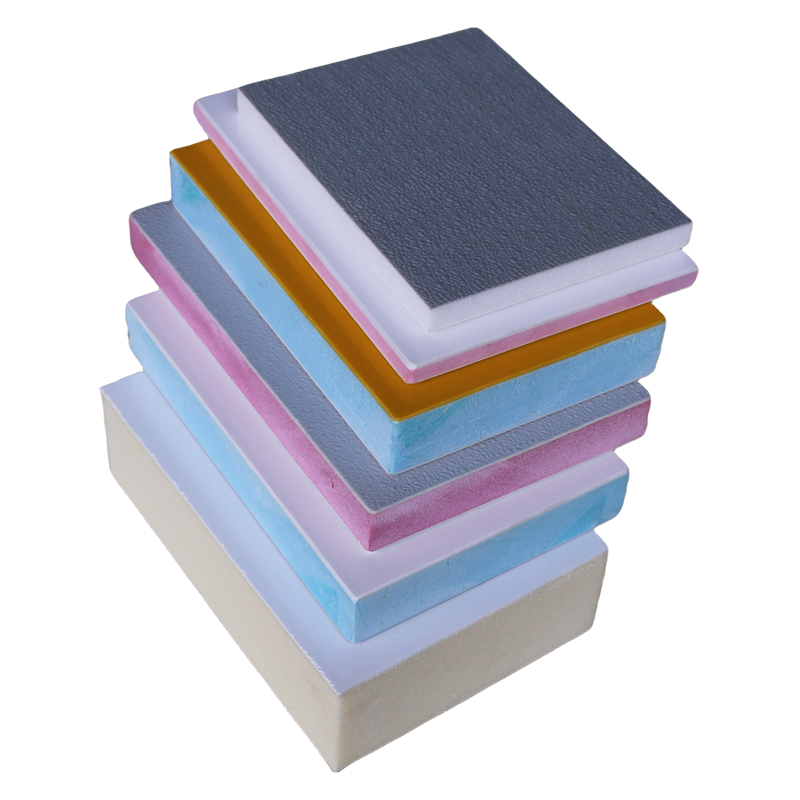

Colors: White (standard), RAL colors, or custom gel coats.
Surface textures: Anti-slip embossed, smooth, or matte.
Additionally, the panels can be pre-machined with recesses for door hinges, refrigeration unit mounts, and floor drainage channels. This reduces assembly time for truck body builders.
A: Technically, FRP Composite Panel (Fiberglass Reinforced Plastic) and GRP Composite Panel (Glass Reinforced Plastic) are identical. Both refer to a composite material consisting of glass fibers embedded in a polymer resin (usually polyester, vinyl ester, or epoxy). The term Fiberglass Composite Panel is the generic industry name. When combined with an XPS foam core, we call it a Fiberglass XPS Composite Panel. For refrigerated trucks, you will see all three terms used interchangeably. Our product is certified as both FRP XPS Composite Panel and GRP XPS Composite Panel, ensuring compatibility with global specifications.
A: Absolutely. The FRP XPS Composite Panel has been tested down to -40°C without embrittlement of the FRP skin or cracking of the XPS core. In fact, XPS maintains its compressive strength better than polyurethane foam at subzero temperatures. Many freezer trailer manufacturers exclusively use GRP XPS Composite Panel because it eliminates condensation-related ice buildup on interior walls.
A: Aluminum panels are lighter but suffer from several disadvantages: thermal conductivity (aluminum creates thermal bridges), denting (forklift impacts permanently deform aluminum), and galvanic corrosion (when in contact with steel rivets or chassis). The Fiberglass Composite Panel for Truck Body offers:
No thermal bridging
Impact energy absorption (FRP flexes and returns to shape)
Zero corrosion, even in salt spray environments
Lower noise transmission (FRP/GRP dampens road noise)
For refrigerated applications, FRP Composite Panel for Truck Body is the superior choice.
A: Yes, with appropriate thickness selection. For example:
Roof: 30–40 mm Fiberglass XPS Composite Panel with white UV-resistant gel coat.
Walls: 50–80 mm FRP XPS Composite Panel with smooth interior finish.
Floor: 100–150 mm GRP XPS Composite Panel with anti-slip surface and higher density XPS (150 kPa compressive strength).
We recommend using the same panel family — FRP Composite Panel for Refrigerated Truck — for all three to simplify inventory and bonding.
A: Panels are typically joined using three methods:
Recessed aluminum extrusions: Bolt-through design with thermal break.
Structural adhesives + scarf joints: Seamless exterior finish.
FRP lap joints with countersunk rivets: Fastest for prototype or small runs.
Our technical team provides joint design drawings for GRP Composite Panel for Truck Body assemblies, including sealant recommendations (e.g., Sikaflex-252).
A: The non-porous gel coat of the FRP XPS Composite Panel resists bacterial absorption. Recommended cleaning protocol:
Daily: Pressure wash (1500 psi) with mild alkaline detergent.
Weekly: Apply 200 ppm chlorine solution, let dwell for 10 minutes, rinse.
Quarterly: Inspect for any cracks in the FRP Composite Panel and repair with patch kit.
Do not use abrasive pads or steel wool — they will scratch the gel coat but not compromise structural integrity.
A: With proper maintenance, the GRP XPS Composite Panel provides 15–20 years of service. The XPS core does not hydrolyze or lose insulating value, unlike polyurethane foam which can absorb moisture and collapse over time. Many Fiberglass Composite Panel for Truck Body installations from the 2000s are still in service with original panels.
A: Yes. We manufacture FRP XPS Composite Panels with XPS densities ranging from 30 kg/m³ (insulation-focused) to 60 kg/m³ (floor-focused). Thickness tolerance is ±0.5 mm. For specialized applications like dual-temperature refrigerated trucks, we can embed aluminum thermal break profiles inside the GRP XPS Composite Panel during lamination.
The Fiberglass Composite Panel can be cut with:
Carbide-tipped circular saws (tooth geometry: triple-chip grind)
CNC routers for complex cutouts (door frames, light recesses)
Waterjet cutting for zero heat-affected zone
Always wear respiratory protection when cutting FRP — glass fibers are an irritant. For large-volume production, we offer pre-cut FRP Composite Panels with ±1 mm accuracy.
Use the following guidelines for assembling a GRP Composite Panel for Truck Body:
Structural adhesive: Two-component epoxy or polyurethane (e.g., 3M DP490). Surface preparation: abrade with 80-grit, clean with isopropyl alcohol.
Mechanical fasteners: Use stainless steel self-tapping screws with pilot holes. Do not overtighten — FRP will crush under excessive torque.
Sealing: Apply butyl tape or silicone sealant at all joints before final compression.
For rear doors, reinforce the Fiberglass XPS Composite Panel with a 3-mm aluminum doubler plate embedded into the core. This distributes hinge and latch loads without cracking the FRP skin. Our standard FRP XPS Composite Panel can be ordered with pre-embedded door reinforcements.
The Fiberglass Composite Panel for Refrigerated Truck contributes to green logistics in several ways:
XPS foam is 100% recyclable at end-of-life (via mechanical grinding into filler for construction materials).
FRP/GRP skins can be downcycled into cement kiln feedstock or composite lumber.
Weight reduction directly lowers diesel consumption → fewer CO₂ emissions.
Long service life means fewer panel replacements over a truck’s operating life.
We are actively developing a bio-based resin system for the GRP Composite Panel to further reduce the carbon footprint.
| Parameter | Value / Range |
|---|---|
| Panel type | Fiberglass (FRP/GRP) XPS Foam Composite Panel |
| Total thickness | 25 – 150 mm (custom) |
| FRP skin thickness | 1.5 – 3.0 mm per side |
| XPS core density | 30 – 60 kg/m³ |
| Thermal conductivity (λ) | 0.028 – 0.032 W/m·K |
| Compressive strength (XPS) | 150 – 350 kPa |
| Flexural strength (sandwich) | > 18 MPa (per ASTM C393) |
| Water absorption (24h) | < 0.3% by volume |
| Operating temperature | -40°C to +80°C |
| Flame spread index | ≤ 25 (ASTM E84 Class A) |
| Standard size | 2500 mm x 12000 mm (max) |
To order FRP Composite Panel for Refrigerated Truck:
Submit drawing: Provide panel dimensions, cutouts, and core thickness.
Select grade: Standard (white gel coat) or premium (UV-resistant, anti-graffiti).
Choose core density: 35 kg/m³ for walls/roof; 55 kg/m³ for floors.
Request sample: We ship 300 mm x 300 mm test panels within 5 business days.
Production lead time: 20 to 30 days
Minimum order quantity: 500 m² of Fiberglass XPS Composite Panel.
The transition from metal-skinned or plywood-based truck bodies to Fiberglass (FRP/GRP) XPS Foam Composite Panel is not merely an upgrade — it is a strategic investment. Higher payload, lower fuel costs, superior thermal stability, and minimal maintenance all contribute to a rapid return on investment.
Whether you call it a FRP Composite Panel, GRP Composite Panel, or simply a Fiberglass Composite Panel for Truck Body, the underlying benefits remain unchanged. For refrigerated applications, the Fiberglass Composite Panel for Refrigerated Truck represents the industry’s gold standard.
Contact our engineering team today to request a quote, technical datasheet, or free sample of the FRP XPS Composite Panel or GRP XPS Composite Panel. Build a refrigerated truck body that will outlast the chassis itself.
