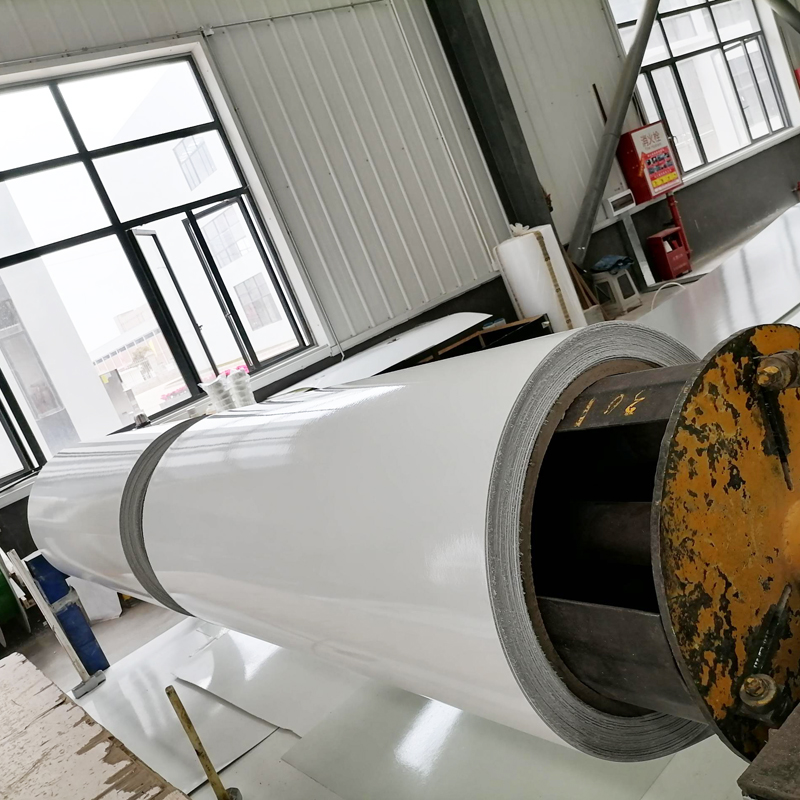

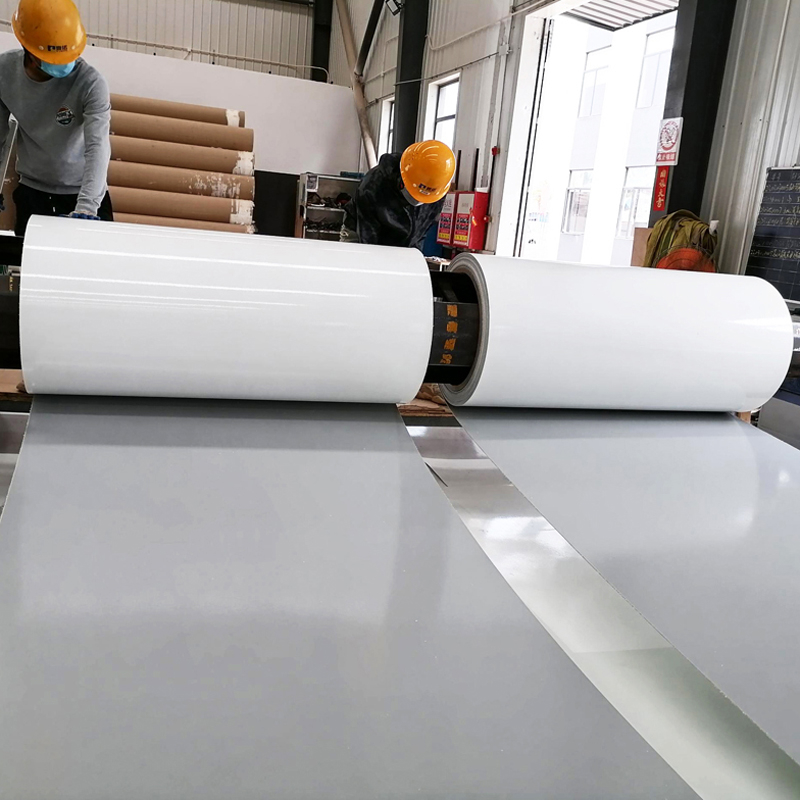

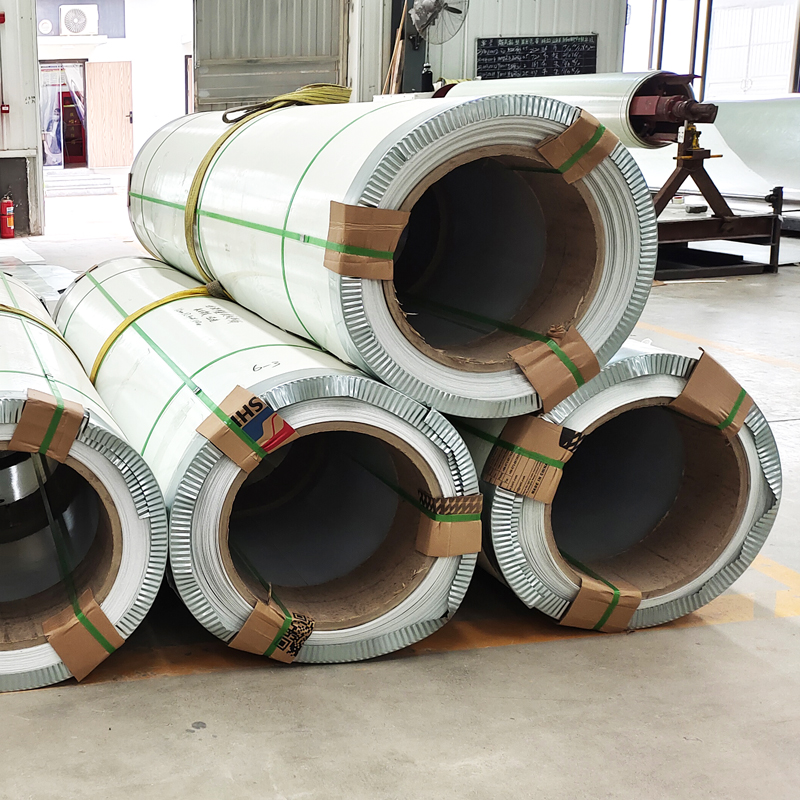

Fiberglass GRP (Glass Reinforced Plastic) or FRP (Fiberglass Reinforced Plastic) rolls are premium-quality materials designed for advanced insulation and structural support applications. These rolls are extensively used in creating sandwich panels, particularly by laminating with XPS (extruded polystyrene) foam boards. This combination produces a highly durable, lightweight, and insulated panel, ideally suited for freezer truck boxes. Freezer truck boxes demand a reliable and robust solution to maintain consistent temperature control while ensuring structural stability. Fiberglass GRP/FRP rolls fulfill these needs due to their unique thermal and physical properties.
FRP/GRP rolls come in various dimensions and thicknesses to meet diverse application requirements. Standard sizes typically include widths ranging from 1.8 meter to 2.8 meters (including 2 meters, 2.2 meters, 2.4 meters, 2.6 meters etc.), with thickness options that vary between 1.2mm and 3mm (including 1.5mm, 2mm etc.). Custom sizes are also available based on specific project needs. Key specifications may include:
Width: 1.8-2.8 meters
Thickness: 1.2-3 mm
Roll Length: 30-120 meters
Color Options: Typically white, with custom colors available upon request
Surface Finish: Smooth, anti-skid, or embossed finishes for enhanced grip
These specifications allow manufacturers to tailor the GRP/FRP rolls for diverse freezer truck box designs.
The exceptional suitability of Fiberglass GRP/FRP rolls for freezer truck boxes stems from several key properties:
Superior Thermal Insulation: GRP/FRP rolls exhibit excellent thermal insulation, which helps maintain consistent interior temperatures. When laminated with XPS foam to create a sandwich panel, these rolls provide an efficient thermal barrier, reducing the risk of temperature fluctuations inside freezer trucks.
High Strength-to-Weight Ratio: GRP/FRP rolls are lightweight yet durable, offering the strength needed for structural support without adding excessive weight. This is essential for freezer truck boxes, where a high load-carrying capacity is needed without compromising fuel efficiency.
Moisture and Corrosion Resistance: The Fiberglass rolls resist moisture absorption and are highly resistant to corrosion, which is crucial for environments prone to temperature variations and condensation, as seen in freezer truck applications.
Impact Resistance: These fiberglass rolls are engineered to withstand impacts, which helps maintain panel integrity in transit, protecting the contents and the vehicle from damage.
UV and Chemical Resistance: With added UV and chemical-resistant properties, GRP/FRP rolls maintain their structural integrity and appearance even when exposed to challenging conditions, such as long hours of sunlight or exposure to cleaning chemicals.
Low Maintenance: Fiberglass reinforced plastic requires minimal maintenance, offering an extended service life with little upkeep. This adds value for freezer truck fleet operators, minimizing repair costs and downtime.
Fiberglass GRP/FRP rolls laminated with XPS are primarily used in the construction of freezer truck boxes. However, they are also applicable in other areas that require reliable insulation and durability, such as:
Cold storage containers
Refrigerated display cases
Temperature-controlled warehouses
Insulated industrial doors and panels
The installation of Fiberglass GRP/FRP rolls in freezer truck boxes is straightforward, but attention to detail is essential to ensure optimal insulation performance. The installation process generally involves:
Preparation: Cut the GRP/FRP rolls to size based on the box panel dimensions. Ensure that the XPS foam board and the rolls are clean and free of contaminants.
Lamination: Apply adhesive to the XPS foam surface and carefully lay the GRP/FRP roll onto the foam. Use a roller to remove air bubbles and ensure a secure bond between the materials.
Edge Sealing: Properly seal the edges with compatible sealants to prevent moisture ingress and enhance insulation.
Panel Assembly: Once the laminated panels are ready, they can be installed into the truck box frame using appropriate fasteners and additional sealing measures for a complete, airtight assembly.
Conclusion
Fiberglass GRP/FRP rolls are an essential component in the construction of high-performance freezer truck boxes. Their superior thermal insulation, moisture resistance, and impact durability make them an ideal choice for maintaining low temperatures and structural integrity in transport applications. With customizable specifications and easy installation, GRP/FRP rolls offer an effective solution for a wide range of refrigerated transport and storage needs.
