In the evolving world of modern construction, the demand for lightweight, durable, and thermally efficient building materials has never been higher. Whether you are constructing an industrial complex, a commercial office, or a residential villa, the choice of wall partition material directly impacts energy costs, installation speed, and long-term structural integrity. Introducing the Fiberglass (FRP/GRP) PU Foam Composite Panel for Building Wall Partition – a high-performance sandwich panel engineered to outperform traditional materials like gypsum, wood, or metal sheets.
This product combines the corrosion-resistant strength of fiberglass-reinforced plastics with the insulating power of rigid polyurethane (PU) foam. The result is a Fiberglass Composite Panel that delivers superior mechanical properties, fire resistance, and thermal insulation. Below, we explore every aspect of this versatile building solution.

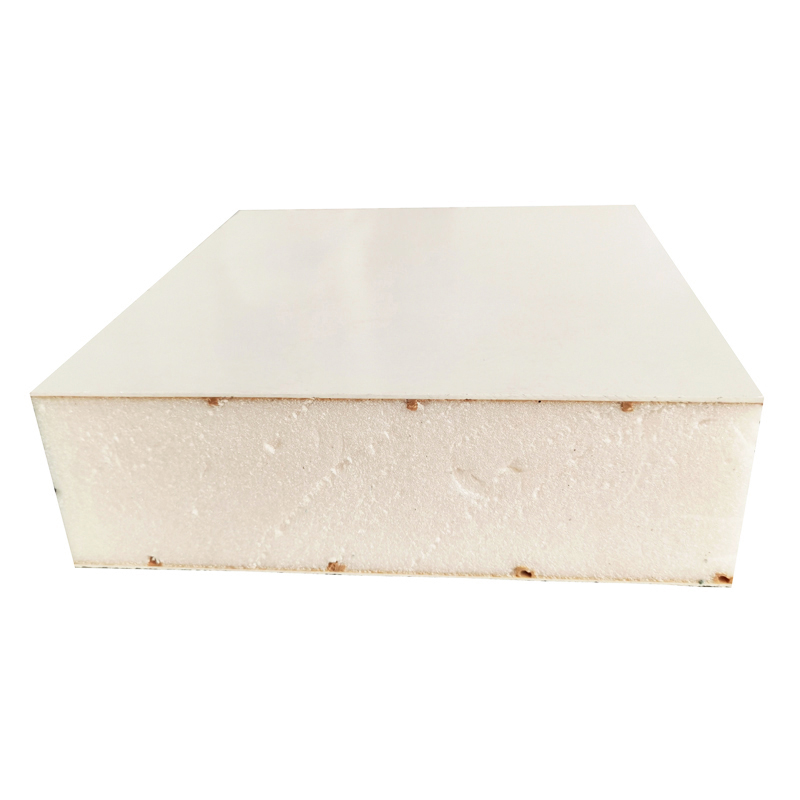

A Fiberglass (FRP/GRP) PU Foam Composite Panel is a structural sandwich panel consisting of two outer layers of fiber-reinforced polymer (FRP or GRP) bonded to a core of high-density polyurethane (PU) foam. The outer skins provide tensile strength, impact resistance, and weatherproofing, while the PU foam core offers exceptional thermal insulation and sound dampening. This unique composition makes it an ideal Fiberglass Composite Panel for Building Wall applications, both indoors and outdoors.
Many clients ask: What is the difference between FRP and GRP? In technical terms, FRP Composite Panel (Fiber-Reinforced Polymer) and GRP Composite Panel (Glass-Reinforced Plastic) refer to the same material. The term GRP is more common in Europe and Asia, while FRP is widely used in North America. Both indicate a composite material where glass fibers reinforce a polymer resin matrix. Therefore, when you see GRP Composite Panel or FRP Composite Panel in this document, know that you are getting the same premium quality product.
Our Fiberglass PU Composite Panel is manufactured using a continuous lamination process, ensuring consistent thickness, flatness, and bond strength. Below are the standout features:
Lightweight & High Strength – At only 8-12 kg/m² (depending on thickness), this panel is easy to handle, yet its flexural strength exceeds 100 MPa.
Thermal Insulation – The PU foam core has a thermal conductivity (λ) of 0.022–0.028 W/(m·K), making it highly efficient for climate control.
Moisture & Mold Resistance – Unlike wood or gypsum, the fiberglass skins and closed-cell PU foam do not absorb water, preventing mold, rot, or swelling.
Fire Retardancy – Available with Class B1 (DIN 4102) or Class A2 fire rating upon request.
Chemical & Corrosion Resistance – Withstands acids, alkalis, salts, and industrial pollutants – ideal for chemical plants or coastal buildings.
Compared to concrete blocks, steel studs with drywall, or aluminum composite panels, a GRP PU Composite Panel offers faster installation (up to 5x quicker), lower transportation costs (due to lightweight nature), and superior thermal bridging performance. For outdoor walls, it never rusts like metal; for indoor partitions, it provides smooth, easy-to-clean surfaces.
The versatility of our Fiberglass Composite Panel for Wall allows it to serve multiple functions in different environments.
When used as an external cladding or facade, the Fiberglass Composite Panel for Building Wall acts as a rainscreen system. It protects the main structural wall from UV radiation, wind-driven rain, and temperature fluctuations. Common outdoor applications include:
Factory and warehouse external walls
Cold storage building envelopes
Modular prefabricated houses
Agricultural sheds (resistant to ammonia and cleaning agents)
Inside a building, an FRP Composite Panel for Wall creates clean, durable, and soundproof partitions. Industries benefiting from this include:
Food processing plants (easy to sanitize, non-porous)
Pharmaceutical cleanrooms (low particle emission)
Hospital operating theaters and corridors (impact-resistant, hygienic)
Office cubicles and meeting rooms (acoustic comfort)
To help engineers and architects specify the correct material, here are the detailed technical data for our GRP Composite Panel for Building Wall applications.
| Parameter | Value / Range |
|---|---|
| Panel thickness | 20mm, 30mm, 40mm, 50mm, 75mm, 100mm (customizable) |
| Standard width | 600mm, 900mm, 1150mm, 1200mm |
| Standard length | 2400mm–12000mm (custom cut) |
| Outer skin thickness (each side) | 1.0mm to 3.0mm (FRP/GRP) |
| Core material | Rigid polyurethane (PU) foam, density 40–60 kg/m³ |
| Thermal conductivity (U-value) | 0.45 W/m²K (for 50mm panel) |
| Compressive strength | ≥0.30 MPa |
| Water absorption | <1% by volume (ASTM D2842) |
| Operating temperature | -40°C to +100°C |
This FRP PU Composite Panel can be manufactured with smooth, textured, anti-slip, or gel-coated surfaces. Colors are customizable (RAL code matching).
The integration of polyurethane foam is what elevates a standard FRP PU Composite Panel above simple fiberglass sheets. PU foam is renowned for its excellent adhesion to fiberglass skins, creating a true composite action where the skins and core work together to resist bending and shear loads. Furthermore, the closed-cell structure ensures no moisture ingress, preserving thermal performance for decades.
Installing a Fiberglass Composite Panel for Wall Partition is straightforward, but following best practices ensures maximum longevity.
Substrate Preparation – Ensure the steel or aluminum frame is level and plumb. Maximum stud spacing: 600mm center-to-center for 50mm panels.
Panel Cutting – Use a circular saw with a carbide-tipped blade or an abrasive saw. Wear respiratory protection.
Fixing Method – For exterior Fiberglass Composite Panel for Building Wall, use stainless steel self-drilling screws with neoprene washers to prevent water penetration. Pre-drilling is recommended for panels thicker than 2mm skin.
Sealing Joints – Apply a neutral-cure silicone sealant or PU joint sealant between panels. For a monolithic look, use an aluminum H-profile or PVC joining profile.
Finishing – For enhanced weather resistance, apply a UV-protective clear coat if the panel is exposed to direct sunlight for over 5 years.
For internal dry walls using an FRP Composite Panel for Wall, the process is even simpler:
Use a timber or metal stud framework (400–600mm centers).
Attach panels using staples, adhesive (PU-based construction adhesive), or self-tapping screws with caps.
Conceal joints with PVC trims or batten strips for a seamless look.
Install electrical conduits and sockets before final panel attachment (the PU foam core can be routed for wiring).
Green building certifications like LEED and BREEAM increasingly favor materials with low embodied energy and long service life. Our GRP PU Composite Panel meets these criteria:
Long Lifespan – Over 30 years without degradation when properly installed, reducing replacement waste.
Recyclability – Fiberglass and PU foam can be mechanically recycled into filler materials or energy recovery.
Energy Savings – A building using Fiberglass PU Composite Panel walls can reduce HVAC energy consumption by up to 35% compared to uninsulated concrete walls.
Zero CFC/HCFC – Our PU foam is blown with eco-friendly pentane or water-blown technology.
Moreover, because the FRP Composite Panel for Wall is lightweight, it reduces the carbon footprint associated with transportation (more square meters per truckload).
To understand why our FRP Composite Panel for Wall is superior, examine this comparison table:
| Property | FRP Composite Panel | Steel Sheet | Aluminum Composite | Plywood |
|---|---|---|---|---|
| Weight (kg/m², 50mm) | 10 | 22 | 16 | 18 |
| Corrosion resistance | Excellent | Poor (rusts) | Good but costly | Poor (rots) |
| Thermal conductivity (W/mK) | 0.028 (core) | 50 | 160 | 0.12 |
| Sound reduction (STC, 50mm) | 32 | 24 | 26 | 28 |
| Cost per m² (installed) | Medium | Low (but short life) | High | Low (but high maintenance) |
| Lifespan (years) | 30+ | 10-15 (coated) | 20 | 5-10 |
Clearly, the FRP Composite Panel for Wall offers the best balance of durability, insulation, and lifecycle cost.
A 5,000 m² cold storage facility required an internal wall partition capable of withstanding -25°C and daily washdowns with caustic cleaners. Our GRP Composite Panel for Wall (50mm thick, smooth white gel coat) was installed over a steel frame. After 4 years of operation, the panels show no delamination, mold, or loss of insulation value. The client reported a 28% reduction in refrigeration energy costs.
Twenty prefabricated classroom modules were built using Fiberglass PU Composite Panel for both exterior cladding and interior partitions. The lightweight nature allowed helicopter transport to remote fjord villages. The thermal performance (U-value 0.38 W/m²K) kept classrooms warm despite Arctic winters. The school board has ordered 15 additional modules.
A Class 10,000 cleanroom needed non-shedding, chemical-resistant walls. The FRP PU Composite Panel with seamless joint seals and rounded corners satisfied ISO 14644 standards. After 3 years of daily alcohol and peroxide cleaning, the panels remain glossy and intact.
We understand that every project has unique dimensions, fire codes, and aesthetic requirements. When you order our Fiberglass Composite Panel for Building Wall, you can specify:
Total panel thickness – from 20mm to 150mm for extreme insulation.
Skin thickness – 1.0mm to 3.0mm for impact resistance.
Surface finish – smooth, matte, anti-graffiti, non-slip, or embossed (woodgrain, linen, etc.).
Color – any RAL or custom color. Gel-coated surfaces offer UV stability for outdoor use.
Edge profile – square edge, tongue-and-groove, or shiplap for interlocking.
Fire rating – B1, B2, or A2 (non-combustible core available).
Pre-installed inserts – threaded inserts, mounting rails, or conduit channels.
MOQ: 500 m². Samples available for testing and approval.
Absolutely. The Fiberglass Composite Panel is 100% waterproof. The PU foam core does not absorb moisture, and the FRP skins are impervious to steam. It is commonly used in commercial kitchens, shower rooms, and indoor swimming pools.
Standard GRP Composite Panel may yellow or chalk over long-term UV exposure. However, we offer an optional UV-resistant gel coat or a polyurethane clear coat that protects against UV degradation for up to 10 years. For permanent outdoor application, we recommend specifying "UV-stable GRP Composite Panel."
Simple – use mild detergent, warm water, and a soft cloth or sponge. For grease or chemicals, use isopropyl alcohol or a non-abrasive cleaner. Do not use steel wool or strong solvents like acetone, which can damage the gel coat.
Yes, thin panels (≤30mm total thickness with 1.5mm skins) can be cold-bent to a minimum radius of 2 meters. For tighter radii (e.g., 500mm), we can manufacture pre-curved panels using a thermoforming process.
Standard thickness and colors: 2–3 weeks. Custom colors, fire ratings, or printed patterns: 4–6 weeks. Express delivery (7–10 days) is available for an additional charge.
After reviewing the technical specifications, installation methods, and real-world benefits, it becomes evident that traditional building materials cannot compete with the combination of lightness, strength, and insulation offered by our Fiberglass Composite Panel for Building Wall. Whether you call it an FRP Composite Panel, GRP Composite Panel, or Fiberglass PU Composite Panel, you are choosing a product that reduces labor costs, cuts energy bills, and lasts for decades without rot, rust, or repainting.
For architects, it opens new design possibilities with colored, textured, and curved surfaces. For contractors, it means faster project completion and fewer callbacks. For building owners, it translates to lower maintenance and comfortable indoor environments.
Ready to upgrade your next construction project with a premium Fiberglass (FRP/GRP) PU Foam Composite Panel for Building Wall Partition? Contact our technical sales team today.
Email: lzpanels@163.com
WhatsApp: +8613702432446
Please provide your project location, total wall area (m²), desired panel thickness, and any fire rating or color requirements. We will reply within 24 hours with a detailed quotation, CAD drawings, and a free sample shipment.
