1.5mm & 2mm Fiberglass Reinforced Polyester Resin Panel in Coil for Refrigerated Truck Body Wall

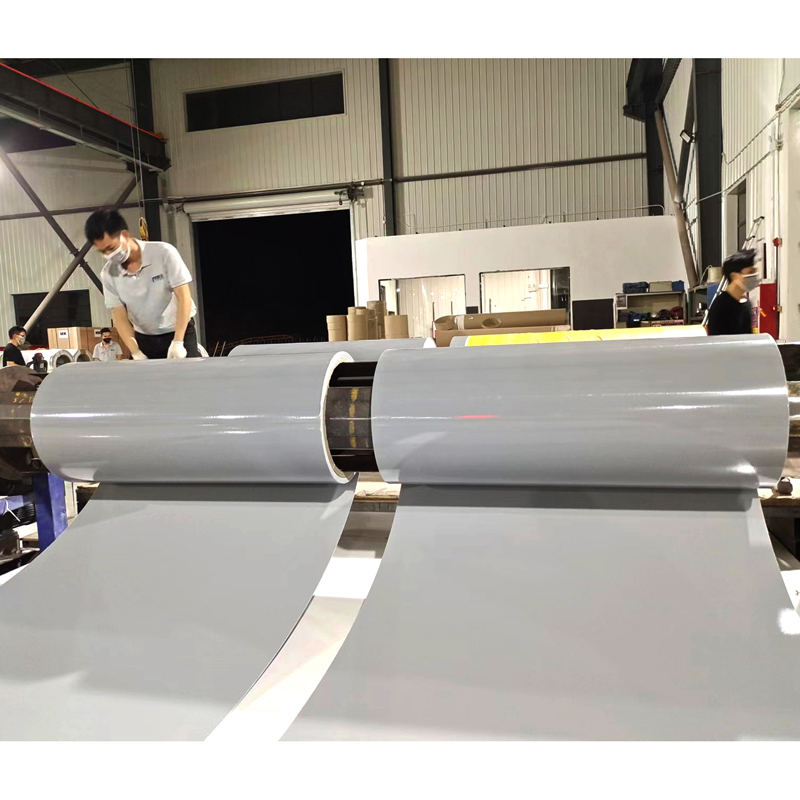

Introduction to Fiberglass Reinforced Polyester Panel in Coil

Fiberglass reinforced polyester panels (FRP panels) are widely used in the manufacturing of refrigerated truck bodies due to their durability, lightweight nature, and excellent thermal insulation properties. Available in 1.5mm fiberglass panel and 2mm fiberglass panel thicknesses, these panels are supplied in coil form for easy processing and seamless integration into cold storage transportation solutions.

The fiberglass resin panel in coil is specifically designed to be laminated onto XPS (extruded polystyrene) foam, forming a high-strength composite panel ideal for refrigerated truck walls. This combination ensures structural integrity while maintaining superior temperature control.

Key Features of Fiberglass Reinforced Resin Panel

1. High Strength & Durability

The fiberglass reinforced polyester panel is engineered to withstand harsh environmental conditions, including extreme temperatures, moisture, and mechanical stress. The fiberglass reinforcement provides exceptional tensile strength, making it resistant to cracks and impacts.

2. Lightweight Yet Robust

Compared to traditional metal panels, fiberglass wall panels are significantly lighter, reducing the overall weight of refrigerated trucks. This enhances fuel efficiency without compromising structural performance.

3. Corrosion & Chemical Resistance

Unlike steel or aluminum, fiberglass resin panels do not rust or corrode when exposed to moisture, chemicals, or road salts. This makes them an ideal choice for refrigerated truck bodies that frequently encounter wet and corrosive environments.

4. Thermal Insulation Properties

When combined with XPS foam, the fiberglass panel for refrigerated truck body creates an effective thermal barrier, minimizing heat transfer and maintaining consistent internal temperatures. This is crucial for transporting perishable goods.

5. Easy Fabrication & Installation

Supplied in coil form, the fiberglass reinforced polyester panel in coil can be easily cut, shaped, and laminated onto insulation cores. This flexibility allows manufacturers to produce custom-sized panels for different refrigerated truck models.

Applications of Fiberglass Reinforced Panels in Refrigerated Trucks

1. Refrigerated Truck Walls & Roofs

The primary use of 1.5mm and 2mm fiberglass panels is in constructing the walls and roofs of refrigerated trailers. Their smooth surface allows for easy cleaning, ensuring compliance with food safety standards.

2. Cold Storage Containers

Beyond trucks, these fiberglass resin panels in coil are also used in cold storage units, shipping containers, and modular refrigeration systems where thermal efficiency is critical.

3. Industrial Partitioning

Due to their strength and resistance to wear, fiberglass reinforced resin panels are also employed in industrial partitions, cleanrooms, and hygienic environments.

Why Choose Fiberglass Panels Over Traditional Materials?

• Lower Maintenance Costs: Unlike metal, fiberglass wall panels do not require frequent repainting or anti-corrosion treatments.

• Longer Lifespan: The non-degradable nature of fiberglass reinforced polyester panels ensures a longer service life compared to steel or aluminum.

• Better Insulation Performance: The composite structure of fiberglass panels for refrigerated truck bodies provides superior thermal retention compared to metal-only constructions.

• Customizable Finishes: Available in various textures and colors, these panels can be tailored to meet aesthetic and functional requirements.




Installation & Processing Guidelines

1. Uncoiling & Cutting: The fiberglass panel in coil is unrolled and cut to the required dimensions using standard cutting tools.

2. Lamination with XPS Foam: The panel is bonded to XPS foam using high-strength adhesives, forming a rigid composite structure.

3. Assembly into Truck Body: The laminated panels are then assembled into the refrigerated truck frame, ensuring airtight seams to prevent thermal leakage.

4. Finishing & Sealing: Edges are sealed with waterproofing materials to enhance durability and insulation efficiency.




Conclusion

The 1.5mm fiberglass panel and 2mm fiberglass panel in coil form are essential materials for manufacturing high-performance refrigerated truck bodies. Their combination of strength, lightweight properties, and thermal efficiency makes them superior to traditional metal panels. Whether used in fiberglass reinforced polyester panels for truck walls or cold storage units, these panels ensure durability, energy efficiency, and long-term cost savings.

For manufacturers seeking reliable fiberglass resin panel in coil solutions, these products offer an optimal balance of performance and ease of fabrication, making them the preferred choice in the refrigeration transport industry.
